What Is a Steel Structure Building?

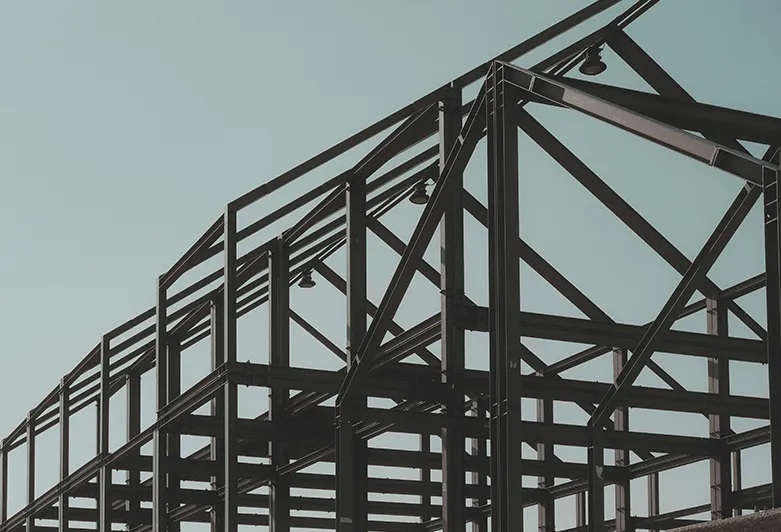

A steel structure building is a construction system in which the primary load-bearing framework is composed of structural steel members — including columns, beams, purlins, and bracing — assembled to form a complete, durable, and highly adaptable building. Compared to traditional concrete or timber construction, steel structure buildings offer superior strength-to-weight ratios, faster construction timelines, and far greater design flexibility.

At KXD, every prefabricated steel structure building is engineered from the ground up to meet your specific project requirements. Whether you need a clear-span agricultural facility, a large-scale industrial plant, a commercial retail space, or a custom residential structure, our in-house design team — using Tekla, PKPM, and 3D3S — produces precise structural drawings and fabrication documentation tailored to your site conditions, local building codes, and intended use.

Standard Specifications

The following parameters represent our standard manufacturing range. All specifications can be customized to meet your project requirements.

Parameter Standard Range
Primary Structure Welded H-section steel frame (Q235B / Q355B)
Secondary Structure Cold-formed C/Z purlins and girts
Clear Span Up to 100m (single span); wider available with multi-span design
Building Height 3m – 30m (eave height); customizable
Roof Slope 1:10 – 1:5 (standard); adjustable per design
Wall & Roof Cladding Single-skin steel panel / Sandwich panel (EPS, PU, Rock Wool) / Glass wool
Surface Treatment Shot blasting + two-coat epoxy primer + finish coat
Design Wind Load Up to 160 km/h (customizable per local code)
Design Snow Load Customizable per project location
Seismic Design Available per local seismic zone requirements
Lifespan 50+ years
Minimum Order 600 sqm
Price Range USD 40 – 100 / sqm (varies by specification)
Delivery Time 30 working days(depending on project complexity and order volume)
Supply Capacity 8,000 tons per month
Payment Terms T/T
Packing Seaworthy packing

Why Choose KXD Steel Structure Buildings

  • Clear-Span Design

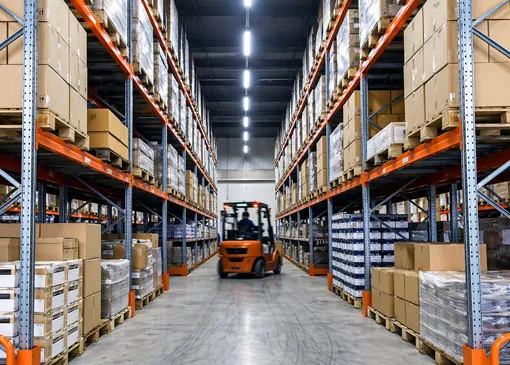

    Eliminates interior columns to maximize usable floor space — ideal for warehouses, workshops, and large assembly areas.

  • High-Grade Steel Materials

    Primary structures fabricated from Q235B or Q355B steel, ensuring exceptional load-bearing capacity and long-term structural integrity.

  • Fast On-Site Assembly

    Pre-engineered components are precision-manufactured off-site and bolt-connected on-site, significantly reducing construction time and labor costs.

  • Versatile Cladding Options

    Choose from single-skin steel panels, EPS/PU/Rock Wool sandwich panels, or glass wool cladding — optimized for insulation, acoustics, and aesthetics.

  • CE & ISO Certified Quality

    Every component is manufactured under strict CE (EN1090) and ISO 9001 / 14001 / 45001 certified quality control protocols, with full material traceability.

  • 50-Year Design Lifespan

    Galvanized treatment, anti-rust coatings, and robust structural design ensure your building performs reliably for decades with minimal maintenance.

Fully Customizable to Your Requirements

No two projects are identical, and neither are our buildings. KXD offers comprehensive customization across every aspect of your steel structure building:

Structural form: Single-span, multi-span, single-storey, or multi-storey configurations

Dimensions: Custom width, length, and eave height to fit your site

Cladding & insulation: Panel type, thickness, and color to suit climate and aesthetics

Doors & windows: Sliding doors, roller shutters, aluminum alloy windows, skylights

Accessories: Crane beams, mezzanine floors, ventilation systems, gutters and downpipes

Finishes: RAL color selection for roof and wall panels

Steel Structure Building Projects Around the World

KXD has successfully delivered steel structure buildings across 80+ countries, covering a wide range of applications — from gable-frame church facilities and agricultural farming houses to large-scale industrial complexes. Each project is engineered to local building codes and climate conditions, ensuring structural safety and long-term performance.

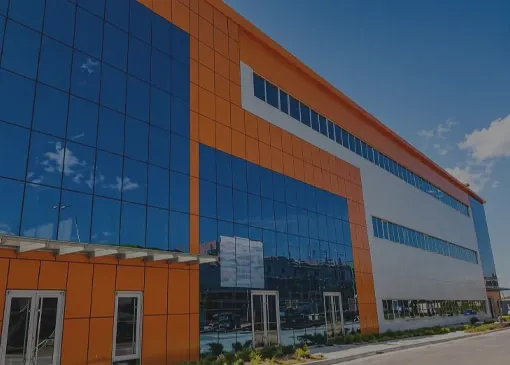

  • Lot4 Project in Algeria

    A 20,160 m² television production building with a box-column steel structure, PU composite panel enclosure, and partial glass curtain wall.

  • Cattle Farms in Papua New Guinea

    An integrated cattle farming project covering breeding, housing, milking, treatment, storage, and dairy processing facilities.

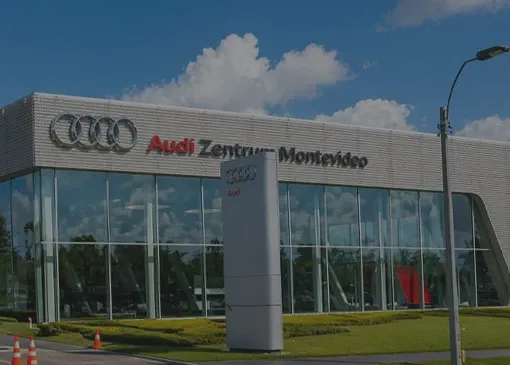

  • Audi 4S Shop, Montevideo

    A 4,587 m² project with an exhibition hall and workshop, featuring steel structural systems and insulated wall and roof panels.

Looking for an Industry-Specific Solution?

Our steel structure buildings serve a wide range of industries. Explore our tailored solutions:

Frequently Asked Questions

  • Q

    What is the maximum clear span for a steel structure building?

    A

    KXD’s single-span steel structure buildings can achieve clear spans of up to 100 meters. For wider requirements, multi-span portal frame designs are available with no practical width limitation.

  • Q

    How long does it take to manufacture and deliver a steel structure building?

    A

    Depending on project complexity and order volume.

  • Q

    What is the cost of a steel structure building?

    A

    Steel structure building cost varies based on size, specification, cladding type, and accessories. Contact us for a detailed, itemized quotation.

  • Q

    Can KXD provide installation support on-site?

    A

    Yes. Our experienced installation teams can be dispatched to project sites worldwide to guide or directly manage the erection process, ensuring structural integrity and safety compliance.

  • Q

    What certifications do your steel structure buildings carry?

    A

    All KXD steel structure buildings are manufactured under CE (EN1090), ISO 9001, ISO 14001, and ISO 45001 certified quality management systems. WPQR (Welding Procedure Qualification Records) are also available upon request.
