A custom heavy PEB steel building is engineered for industrial projects where standard light-duty framing cannot adequately address concentrated equipment loads, multi-tier process areas, crane interfaces, heavy welded sections, or complex structural coordination.

The system can incorporate welded heavy H-beams, built-up box sections, concrete-filled steel tubular columns, composite floor systems, equipment platforms, pipe racks, elevated hoppers, and crane-runway structures. Finite element analysis and BIM coordination may be applied according to the project’s structural complexity.

This heavy-load PEB solution is intended for mining, metallurgy, chemical processing, power generation, heavy-equipment manufacturing, process plants, and complex logistics facilities. It is suitable for plant owners, engineering companies, EPC contractors, equipment suppliers, and industrial investors requiring a project-specific structural system rather than a standard warehouse kit.

Get a Quote

Standard Specifications

The following parameters represent our standard manufacturing range. All specifications can be customized to meet your project requirements.

Engineering Feature Source-Based Configuration Practical Buyer Value

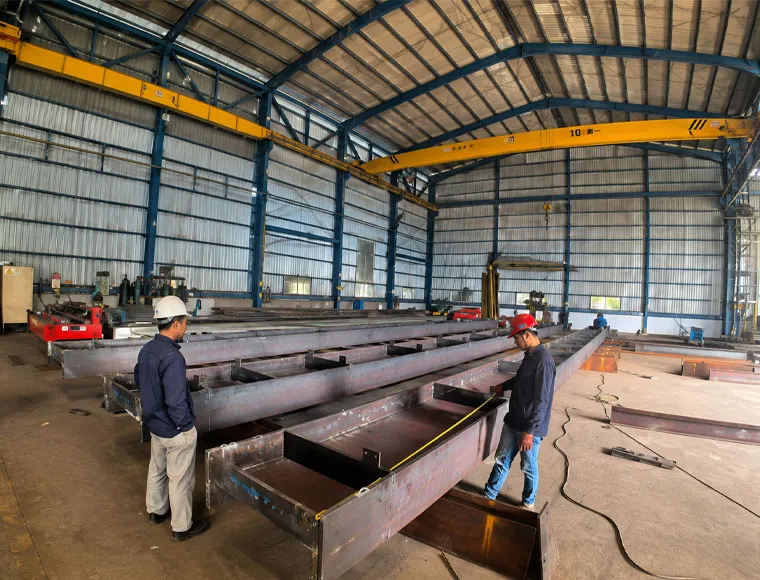

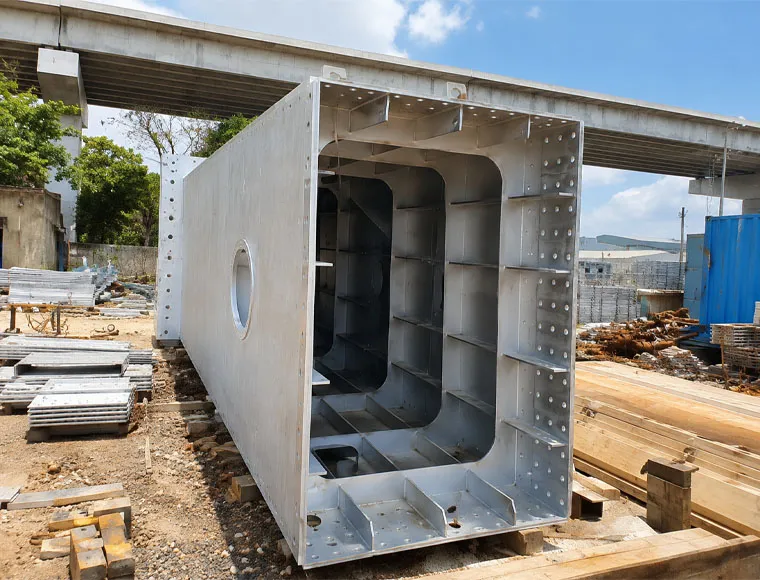

Primary structural members Welded heavy H-beams and built-up box sections Supports non-standard structural layouts and concentrated industrial loads
Alternative column system Concrete-filled steel tubular columns may be evaluated Provides an additional structural option for selected high-load or multi-level projects
Heavy-plate reference Source document lists 12–50 mm heavy steel plates and custom flange plates up to 80 mm Indicates a heavy-section design direction, subject to material and fabrication review
Crane-system reference Source document lists 15–50 T traveling cranes and 50–100 T+ double-girder crane applications Allows crane interfaces to be evaluated after wheel loads, span, duty class, and operating cycles are provided
Multi-tier floor system Composite concrete decks with shear studs Supports production floors, equipment areas, logistics levels, and process platforms
Vibration-control direction Local isolation pads and structural damping brackets Allows machinery-induced vibration to be considered in the structural design
Engineering coordination 3D finite element analysis and BIM Supports load-path evaluation, interference checking, and multidisciplinary coordination
Quality-inspection direction Visual inspection, UT, and MT according to the approved inspection plan Provides project-specific weld-quality verification for critical structural sections
KXD steel structure product detail

Fully Customizable to Your Requirements

KXD can customize the commercial steel frame building according to project requirements, including:

Building geometry: Length, width, clear height, bay spacing, roof profile, process towers, and multi-tier zones

Primary sections: Welded H-beams, built-up box sections, transfer girders, and project-specific heavy members

Column system: Heavy welded columns or CFST options where technically suitable

Plate configuration: Plate thickness, flange width, web depth, stiffeners, diaphragms, and local reinforcement

Equipment support: Machine bases, elevated platforms, hoppers, pipe racks, conveyors, and suspended-service supports

Crane interfaces: Capacity, span, wheel loads, duty class, hook height, runway elevation, brackets, and bracing

Floor systems: Composite steel decks, concrete slabs, openings, equipment zones, and localized reinforcement

Dynamic design: Equipment frequency, impact factors, isolation pads, damping details, and fatigue-sensitive areas

Frequently Asked Questions

  • Q

    What information is required to design a custom heavy PEB steel building?

    A

    Required inputs include the project location, process layout, building dimensions, equipment positions, static and dynamic loads, crane data, platform loads, pipe-rack reactions, hopper loads, wind and snow data, seismic parameters, corrosion conditions, fire requirements, design code, and transport restrictions.

  • Q

    Can the structure support an overhead crane?

    A

    Crane-supporting structures can be evaluated after the crane capacity, span, wheel spacing, maximum wheel loads, duty class, hook height, operating frequency, number of cranes, and simultaneous-operation conditions are provided. Crane tonnage alone is insufficient for structural design.

  • Q

    How are machinery vibration and dynamic loads addressed?

    A

    The engineering team can evaluate equipment frequencies, dynamic forces, structural natural frequencies, local stiffness, composite floors, isolation pads, and damping details. The final solution must be coordinated with the machinery supplier and foundation designer.

  • Q

    Can multi-story industrial areas be integrated into the heavy PEB structure?

    A

    Yes. Multi-tier production areas, equipment platforms, composite floors, pipe racks, and logistics levels can be coordinated where required. When multi-level production is the project’s primary objective, a dedicated multi-storey industrial steel building may provide a clearer system boundary.

  • Q

    Which weld-inspection methods can be included?

    A

    Visual inspection, ultrasonic testing, magnetic-particle testing, and other approved methods can be specified according to the weld type, structural importance, governing standard, acceptance criteria, and project inspection and test plan.
