PEB Steel Buildings Pre-Engineered for Speed, Strength and Versatility

KXD designs and manufactures PEB steel buildings using high-strength structural steel, delivering fast-install, fully customizable pre-engineered solutions for industrial, commercial, and agricultural applications worldwide.

Get a Free Quote

About PEB Steel Building

A PEB steel building — short for Pre-Engineered Building — is a complete structural system that is designed, fabricated, and delivered as a ready-to-assemble package. Every component, from the primary H-section steel frame to the secondary purlins, wall panels, and roofing system, is precision-manufactured in the factory to exact specifications before being shipped to the project site.

Unlike conventional steel construction, a PEB steel building eliminates the need for on-site cutting, welding, or heavy fabrication. All connections are bolt-up, enabling assembly teams to erect the structure rapidly and efficiently. This approach reduces on-site construction time by 30%–50%, minimizes labor costs, and ensures consistent quality across every component. The result is a robust, scalable building system that can be applied across industrial, commercial, agricultural, and residential projects — making PEB light steel building construction one of the most cost-effective and versatile choices in modern structural steel engineering.

Standard Specifications

The following specifications represent our standard manufacturing range. All parameters are fully customizable to meet your project requirements.

Parameter Standard Range
Main Frame Material Q235B / Q355B Structural Steel (H-Section Welded)
Secondary Structure C/Z Purlins, Angle Steel, Steel Rod Bracing
Span Width 6m – 60m (customizable)
Building Length Customizable per project
Eave Height 3m – 15m (customizable)
Roof Pitch 1:10 – 1:5 (adjustable)
Surface Treatment Hot-Dip Galvanized / Anti-Rust Paint
Roof & Wall Panels EPS / PU / Rock Wool Sandwich Panel; Single-skin corrugated sheet
Skylighting FRP Panels (Light Transmittance 85%)
Door Options Sliding door / Rolling shutter / Sectional door
Window Options Aluminum alloy / PVC window systems
Ventilation Turbine ventilator on ridge; louver systems
Connection System Bolt-up (no on-site welding required)
Design Standards GB, ASTM, AISI, JIS, BS (customizable per destination)
Design Lifespan 50+ years
Minimum Order 200 sqm

Why Choose KXD PEB Steel Buildings

  • Clear-Span Design

    Eliminates interior columns to maximize usable floor space — ideal for warehouses, workshops, and large assembly areas.

  • High-Grade Steel Materials

    Primary structures fabricated from Q235B or Q355B steel, ensuring exceptional load-bearing capacity and long-term structural integrity.

  • Fast On-Site Assembly

    Pre-engineered components are precision-manufactured off-site and bolt-connected on-site, significantly reducing construction time and labor costs.

  • Versatile Cladding Options

    Choose from single-skin steel panels, EPS/PU/Rock Wool sandwich panels, or glass wool cladding — optimized for insulation, acoustics, and aesthetics.

  • CE & ISO Certified Quality

    Every component is manufactured under strict CE (EN1090) and ISO 9001 / 14001 / 45001 certified quality control protocols, with full material traceability.

  • 50-Year Design Lifespan

    Galvanized treatment, anti-rust coatings, and robust structural design ensure your building performs reliably for decades with minimal maintenance.

Fully Customizable to Your Requirements

No two projects are identical, and neither are our buildings. KXD offers comprehensive customization across every aspect of your steel structure building:

Structural form: Single-span, multi-span, single-storey, or multi-storey configurations

Dimensions: Custom width, length, and eave height to fit your site

Cladding & insulation: Panel type, thickness, and color to suit climate and aesthetics

Doors & windows: Sliding doors, roller shutters, aluminum alloy windows, skylights

Accessories: Crane beams, mezzanine floors, ventilation systems, gutters and downpipes

Finishes: RAL color selection for roof and wall panels

PEB Steel Building Projects Around the World

KXD has supplied PEB steel buildings to clients across 80+ countries, serving sectors including manufacturing, agriculture, logistics, and commercial development. Our pre-engineered systems are engineered to meet local building codes and climate conditions, ensuring reliable performance from tropical regions to cold-climate markets.

  • Costa Rica Supermarket

    Portal frame structure with mezzanine in part.Roof and wall are color-coated steel sheets and fiberglass woolasinsulation.

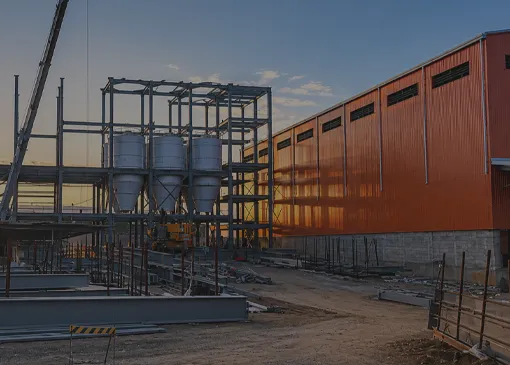

  • Sri Lanka Flour Mills factory

    It consists of 5 buildings, with a total weight of more than 1,500 tons, and is currently under construction.

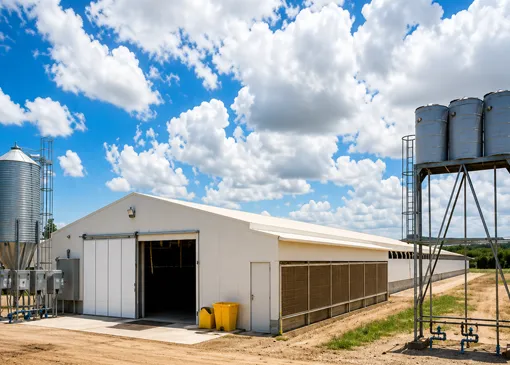

  • Cattle Farms in Papua New Guinea

    An integrated cattle farming project covering breeding, housing, milking, treatment, storage, and dairy processing facilities.

Looking for an Industry-Specific Solution?

Our PEB steel buildings are suitable for a wide range of applications. Explore our industry-specific solutions to find the right configuration for your project:

Frequently Asked Questions

  • Q

    What does PEB stand for, and how is it different from a conventional steel building?

    A

    PEB stands for Pre-Engineered Building. Unlike conventional steel construction, every component of a PEB steel building is designed and fabricated in the factory to exact specifications, then shipped as a complete package for bolt-up assembly on site — eliminating on-site welding and significantly reducing construction time.

  • Q

    What types of projects are PEB steel buildings suitable for?

    A

    PEB steel buildings are highly versatile and suitable for industrial factories, warehouses, workshops, agricultural storage, logistics centers, commercial buildings, and residential applications. Their modular design makes them adaptable to virtually any project type or scale.

  • Q

    Can KXD design a PEB steel building to meet local building codes?

    A

    Yes. KXD’s engineering team designs every PEB steel building in compliance with the applicable local building standard — including GB (China), ASTM/AISI (USA), BS (UK), and other international codes — based on your project location and requirements.

  • Q

    Can KXD provide installation support on-site?

    A

    Yes. Our experienced installation teams can be dispatched to project sites worldwide to guide or directly manage the erection process for your PEB steel building.

  • Q

    What certifications do your PEB steel buildings carry?

    A

    All KXD PEB steel buildings are manufactured under CE (EN1090), ISO 9001, ISO 14001, and ISO 45001 certifications, with full material traceability documentation.

Ready to Start Your PEB Steel Building Project?

Share your project requirements with our engineering team and receive a customized pre-engineered solution and detailed proposal within 24 hours.
