Steel Structure Workshop Heavy-Load Ready, Fast to Build

KXD manufactures steel structure workshops engineered for heavy-load industrial production — combining H-section welded frames, overhead crane compatibility, and prefabricated bolt-up assembly to deliver your facility on time and on budget.

Get a Free Quote

About Steel Structure Workshop

A steel structure workshop is a purpose-built industrial facility designed to house manufacturing equipment, processing lines, heavy machinery, and skilled labor under a single clear-span roof. Unlike standard storage buildings, a steel structure workshop building must accommodate dynamic operational loads — including overhead crane systems, vibration from production equipment, and the concentrated weight of industrial machinery — while maintaining structural stability over decades of continuous use.

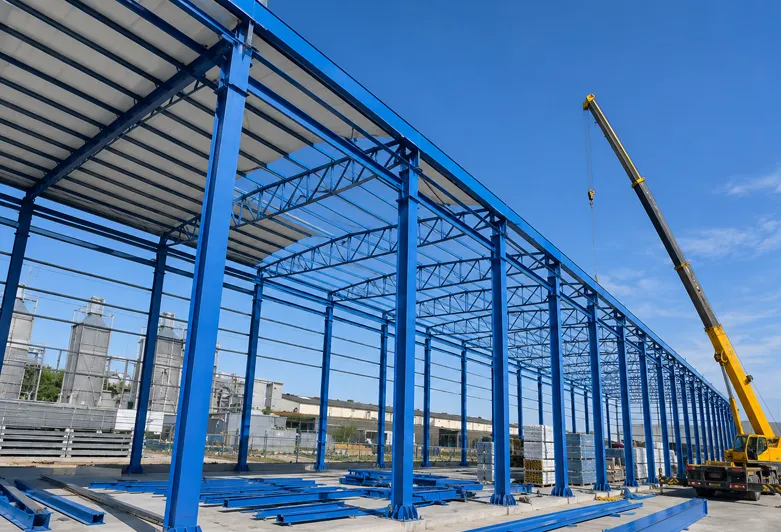

KXD’s prefabricated steel structure workshop systems are built around primary H-section welded frames fabricated from Q235B or Q345B (SS400) structural steel, compliant with ASTM, BS, and GB design standards. All components are precision-manufactured in our factory and delivered ready for bolt-up assembly on site, eliminating on-site welding and reducing construction time significantly. From light steel structure workshops for small-scale fabrication to large multi-bay heavy load prefab workshop complexes with 30-ton crane systems, KXD engineers every project to match your specific production requirements.

Standard Specifications

The following specifications represent our standard manufacturing range. All parameters are fully customizable to meet your project requirements.

Parameter Standard Range
Main Frame Material Q235B / Q345B (SS400) — H-Section Welded
Design Standards ASTM / BS / GB (customizable per destination)
Span Width 12m – 60m (customizable)
Building Length Customizable per project
Eave Height 6m – 20m (customizable)
Bay Spacing 6m – 9m (standard)
Purlin Type C / Z Shape Steel Channel
Roof System Single Steel Sheeting / Sandwich Panel (EPS / PU / Rock Wool)
Surface Treatment Hot-Dip Galvanized / Painted
Crane Compatibility Single / double overhead crane, 1t – 30t (optional)
Crane Runway Beam Welded H-section crane girder with rail
Door Options Sliding door / Rolling shutter / Sectional overhead door
Window Options Aluminum alloy / Fixed glazing
Ventilation Ridge ventilator / Turbine ventilator / Louver systems
Connection System High-strength bolt connection
Third-Party Testing SGS / BV / ITS (available on request)
Drawing Design Provided by customer or designed by KXD (free)
Design Lifespan 30 – 50 years
Minimum Order 600 sqm

Why Choose KXD Steel Structure Workshops

  • Clear-Span Design

    Eliminates interior columns to maximize usable floor space — ideal for warehouses, workshops, and large assembly areas.

  • High-Grade Steel Materials

    Primary structures fabricated from Q235B or Q355B steel, ensuring exceptional load-bearing capacity and long-term structural integrity.

  • Fast On-Site Assembly

    Pre-engineered components are precision-manufactured off-site and bolt-connected on-site, significantly reducing construction time and labor costs.

  • Versatile Cladding Options

    Choose from single-skin steel panels, EPS/PU/Rock Wool sandwich panels, or glass wool cladding — optimized for insulation, acoustics, and aesthetics.

  • CE & ISO Certified Quality

    Every component is manufactured under strict CE (EN1090) and ISO 9001 / 14001 / 45001 certified quality control protocols, with full material traceability.

  • 50-Year Design Lifespan

    Galvanized treatment, anti-rust coatings, and robust structural design ensure your building performs reliably for decades with minimal maintenance.

Fully Customizable to Your Requirements

No two projects are identical, and neither are our buildings. KXD offers comprehensive customization across every aspect of your steel structure building:

Structural form: Single-span, multi-span, single-storey, or multi-storey configurations

Dimensions: Custom width, length, and eave height to fit your site

Cladding & insulation: Panel type, thickness, and color to suit climate and aesthetics

Doors & windows: Sliding doors, roller shutters, aluminum alloy windows, skylights

Accessories: Crane beams, mezzanine floors, ventilation systems, gutters and downpipes

Finishes: RAL color selection for roof and wall panels

Steel Structure Workshop Projects Around the World

KXD has delivered steel structure workshops to manufacturing clients across 80+ countries, covering sectors including automotive, metal fabrication, food processing, chemical production, and heavy engineering. Each project is engineered to comply with local structural codes and the specific operational demands of the client's production environment.

  • Institute of Applied Chemistrye Project

    A 16,000㎡ Grade I fire-rated lightweight alloy workshop with explosion-proof roofing, walls, doors, and windows.

  • Qingdao CHOHO Industrial Park

    Qingdao Choho Industrial Park west section covers 11,040㎡, with a 2,467.4㎡ auxiliary building.

  • Audi 4S Shop, Montevideo

    A 4,587 m² project with an exhibition hall and workshop, featuring steel structural systems and insulated wall and roof panels.

Looking for an Industry-Specific Solution

Our steel structure workshops serve a wide range of manufacturing and industrial sectors. Explore our industry-specific solutions to find the right configuration for your production facility:

Frequently Asked Questions

  • Q

    What design standards does KXD use for steel structure workshops?

    A

    KXD designs steel structure workshops to comply with ASTM (American), BS (British), and GB (Chinese) standards. Our engineering team will confirm the applicable standard based on your project location and local building code requirements.

  • Q

    What crane capacity can a KXD steel structure workshop support?

    A

    KXD steel structure workshops can be designed to accommodate single or double overhead cranes ranging from 1 ton to 30 tons. The crane runway beam, column brackets, and foundation are all engineered to handle the specific dynamic loads of your crane system.

  • Q

    What is the maximum clear span for a steel structure workshop?

    A

    Our standard clear-span range is 12m to 60m. For projects requiring wider spans, multi-span configurations or truss systems can be designed by our engineering team to meet your requirements.

  • Q

    Can the workshop be expanded in the future?

    A

    Yes. KXD prefabricated steel structure workshops are designed with future expansion in mind. The modular bolt-up system allows additional bays or extensions to be added without demolishing the existing structure.

  • Q

    Can KXD provide installation support on-site?

    A

    Yes. KXD offers both online technical guidance and on-site installation support. Our experienced installation teams can be dispatched to project sites worldwide to guide or directly manage the erection process.

Ready to Build Your Steel Structure Workshop?

Share your production requirements and site conditions with our engineering team. We will develop a customized steel structure workshop solution and provide a detailed proposal within 24 hours.
