Industrial Steel Buildings Built for Heavy-Duty Performance

Custom-engineered industrial steel buildings with clear-span designs up to 80m, manufactured to CE & ISO standards and delivered to 80+ countries.

Get a Free Quote

About Industrial Steel Buildings

An industrial steel building is a pre-engineered structural system designed to meet the demanding requirements of manufacturing plants, processing facilities, heavy-duty workshops, and large-scale storage operations. Built around a primary steel frame — typically fabricated from high-strength Q235B or Q355B structural steel — these buildings deliver exceptional load-bearing capacity, structural stability, and long-term durability under continuous industrial use.

Unlike conventional construction, prefabricated industrial steel buildings are precision-manufactured off-site and assembled on location via bolt-up connections. This approach dramatically reduces construction time and on-site labor while ensuring consistent dimensional accuracy and quality across every component. The result is a robust, scalable industrial facility that can be tailored to virtually any operational requirement — from single-span workshops to multi-bay manufacturing complexes with integrated crane systems.

Standard Specifications

The following specifications represent our standard manufacturing range. All parameters are fully customizable to meet your project requirements.

Parameter Standard Range
Main Frame Material Q235B / Q355B Structural Steel
Span Width 20m – 80m (customizable)
Building Length 30m – 300m (customizable)
Eave Height 6m – 18m (customizable)
Bay Spacing 6m – 9m (standard); wider bays available on request
Roof Pitch 1:10 – 1:5 (adjustable depending on climate)
Surface Treatment Painted / Hot-Dip Galvanized (G90 coating available)
Roof & Wall Cladding Single-skin steel sheet / Sandwich panel (EPS, PU, Rock Wool)
Door Options Sliding door / Roller shutter / Sectional overhead door
Crane Compatibility Single/double overhead crane up to 50t (optional)
Wind Load Resistance Up to 50 m/s (customized per local code)
Snow Load Customized per project location
Seismic Design Available per local seismic zone requirements
Design Lifespan 50 years
Delivery Time 30 working days (standard orders)
Minimum Order 600 sqm
Price Range Depending on specification

Why Choose KXD Industrial Steel Buildings

  • Clear-Span Design

    Eliminates interior columns to maximize usable floor space — ideal for warehouses, workshops, and large assembly areas.

  • High-Grade Steel Materials

    Primary structures fabricated from Q235B or Q355B steel, ensuring exceptional load-bearing capacity and long-term structural integrity.

  • Fast On-Site Assembly

    Pre-engineered components are precision-manufactured off-site and bolt-connected on-site, significantly reducing construction time and labor costs.

  • Versatile Cladding Options

    Choose from single-skin steel panels, EPS/PU/Rock Wool sandwich panels, or glass wool cladding — optimized for insulation, acoustics, and aesthetics.

  • CE & ISO Certified Quality

    Every component is manufactured under strict CE (EN1090) and ISO 9001 / 14001 / 45001 certified quality control protocols, with full material traceability.

  • 50-Year Design Lifespan

    Galvanized treatment, anti-rust coatings, and robust structural design ensure your building performs reliably for decades with minimal maintenance.

Fully Customizable to Your Requirements

No two projects are identical, and neither are our buildings. KXD offers comprehensive customization across every aspect of your steel structure building:

Structural form: Single-span, multi-span, single-storey, or multi-storey configurations

Dimensions: Custom width, length, and eave height to fit your site

Cladding & insulation: Panel type, thickness, and color to suit climate and aesthetics

Doors & windows: Sliding doors, roller shutters, aluminum alloy windows, skylights

Accessories: Crane beams, mezzanine floors, ventilation systems, gutters and downpipes

Finishes: RAL color selection for roof and wall panels

Industrial Steel Building Projects Around the World

KXD has delivered industrial steel buildings across 80+ countries, serving clients in manufacturing, processing, automotive, food production, and heavy industry sectors. From single-span workshops to large multi-bay industrial complexes, our project portfolio demonstrates the versatility and reliability of our engineering and fabrication capabilities.

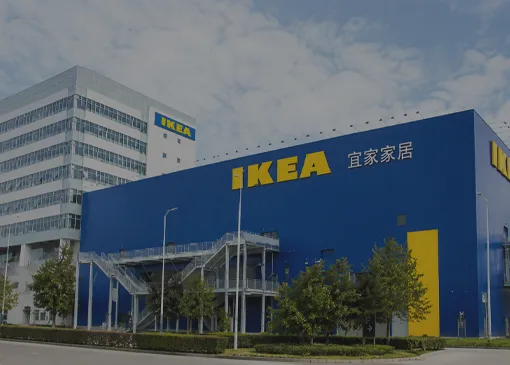

  • IKEA shopping mall

    20,160㎡ television production building with box-column steel frame, PU panels, and partial glass curtain wall.

  • Qingdao IKEA shopping mall

    Qingdao KXD Steel Structure completed the 28,110㎡ IKEA roof project with a 24m single truss span.

  • Garment factory proiect in Ethiopia

    100,000㎡ integrated industrial park with workshops, offices, staff quarters, villas, and full turnkey service.

Looking for an Industry-Specific Solution?

Our industrial steel buildings serve a wide range of sectors. Explore our industry-specific solutions to find the right configuration for your project:

Frequently Asked Questions

  • Q

    What is the maximum clear span for an industrial steel building?

    A

    Our standard clear-span range is 20m to 80m. For projects requiring spans beyond 80m, our engineering team can design custom solutions using multi-span or truss configurations.

  • Q

    How long does it take to manufacture and deliver an industrial steel building?

    A

    Delivery times are customized based on the scale and complexity of your project. Once the design is confirmed, we optimize our production schedule to ensure fast delivery. We also handle all international logistics arrangements.

  • Q

    What is the cost of an industrial steel building?

    A

    The cost depends on various factors including span, height, cladding specification, and functional add-ons. We offer highly competitive pricing—please contact us with your project details for a customized and itemized quotation.

  • Q

    Can KXD provide installation support on-site?

    A

    Yes. Our experienced installation teams can be dispatched to project sites worldwide to guide or directly manage the erection process for your industrial steel frame buildings.

  • Q

    What certifications do your industrial steel buildings carry?

    A

    All KXD industrial steel buildings are manufactured under CE (EN1090), ISO 9001, ISO 14001, and ISO 45001 certifications, with full material traceability documentation.
