Steel Structure Warehouses Clear-Span Storage Built to Last

KXD designs and manufactures prefab warehouse solutions with clear spans up to 60m, customizable dimensions, and rapid bolt-up assembly — delivering reliable, cost-effective storage infrastructure for logistics, manufacturing, and agricultural operations worldwide.



Get a Free Quote

About Steel Structure Warehouse

A steel structure warehouse is a large-span, prefabricated building system designed for the storage of goods, raw materials, finished products, and equipment. Built around a primary H-section steel frame of Q235B or Q355B structural steel, warehouse buildings of this type deliver the clear-span interior space that modern logistics operations demand — free of interior columns that would obstruct forklift movement, racking systems, and bulk cargo handling.

Compared with traditional concrete construction, a prefab warehouse offers significant advantages in construction speed, cost efficiency, and long-term adaptability. All structural components are precision-manufactured in KXD’s factory and delivered to site ready for bolt-up assembly, reducing on-site labor requirements and project timelines substantially. The warehouse steel structure system is also inherently expandable — additional bays can be added to the existing frame as storage capacity requirements grow, without disrupting ongoing operations. From small prefab steel warehouse units for agricultural storage to large multi-span logistics centers, KXD engineers each project to match your site conditions and operational requirements.

Standard Specifications

The following specifications represent our standard manufacturing range. All parameters are fully customizable to meet your project requirements.

Parameter Standard Range
Main Frame Material Q235B / Q355B Structural Steel (H-Section Welded)
Span Width 15m – 60m (customizable)
Building Length Customizable per project
Eave Height 4.5m – 15m (customizable)
Bay Spacing 6m – 9m (standard)
Roof Type Single slope / Double slope / Multi-span
Purlin Type C / Z Galvanized Steel Channel
Roof & Wall Panels Single-skin corrugated sheet (0.4–0.7mm) / EPS / PU / Rock Wool Sandwich Panel (50–150mm)
Surface Treatment Hot-Dip Galvanized / Anti-Rust Paint
Crane Compatibility Overhead crane up to 20t (optional)
Door Options Sliding door / Rolling shutter / Sectional overhead door
Canopy / Overhang Available — customizable projection length
Ventilation Ridge ventilator / Turbine ventilator / Louver systems
Connection System High-strength bolt connection
Design Standards GB, ASTM, BS (customizable per destination)
Design Lifespan 50 years
Minimum Order 600 sqm

Why Choose KXD Steel Structure Warehouses

  • Clear-Span Design

    Eliminates interior columns to maximize usable floor space — ideal for warehouses, workshops, and large assembly areas.

  • High-Grade Steel Materials

    Primary structures fabricated from Q235B or Q355B steel, ensuring exceptional load-bearing capacity and long-term structural integrity.

  • Fast On-Site Assembly

    Pre-engineered components are precision-manufactured off-site and bolt-connected on-site, significantly reducing construction time and labor costs.

  • Versatile Cladding Options

    Choose from single-skin steel panels, EPS/PU/Rock Wool sandwich panels, or glass wool cladding — optimized for insulation, acoustics, and aesthetics.

  • CE & ISO Certified Quality

    Every component is manufactured under strict CE (EN1090) and ISO 9001 / 14001 / 45001 certified quality control protocols, with full material traceability.

  • 50-Year Design Lifespan

    Galvanized treatment, anti-rust coatings, and robust structural design ensure your building performs reliably for decades with minimal maintenance.

Fully Customizable to Your Requirements

No two projects are identical, and neither are our buildings. KXD offers comprehensive customization across every aspect of your steel structure building:

Structural form: Single-span, multi-span, single-storey, or multi-storey configurations

Dimensions: Custom width, length, and eave height to fit your site

Cladding & insulation: Panel type, thickness, and color to suit climate and aesthetics

Doors & windows: Sliding doors, roller shutters, aluminum alloy windows, skylights

Accessories: Crane beams, mezzanine floors, ventilation systems, gutters and downpipes

Finishes: RAL color selection for roof and wall panels

Steel Structure Warehouse Projects Around the World

KXD has supplied steel structure warehouses to logistics, manufacturing, and agricultural clients across 80+ countries. Each project is engineered to meet local structural codes, climate conditions, and the specific storage and operational requirements of the client.

  • Greece Warehouse

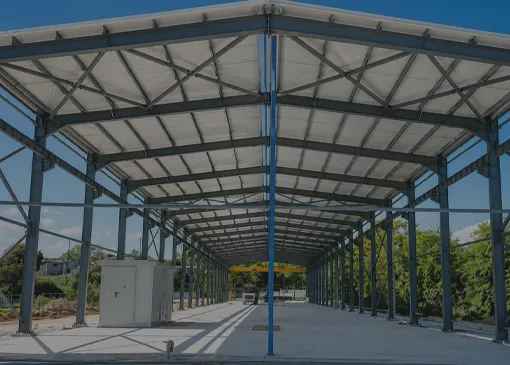

    Open-sided steel warehouse with portal frame, metal roof panels, reinforced bracing, and wide clear space for storage and loading operations.

  • Storage Warehouse in Bahamas

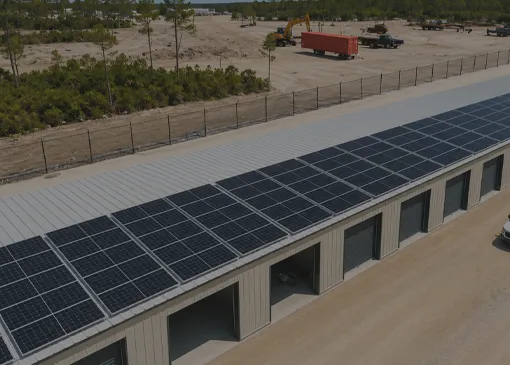

    A 2,300㎡ project using 100mm PU sandwich panels for the roof and walls, with solar panels covering half of the roof.

  • Warehouse in Australia

    Australia steel structure warehouse with portal frame, metal cladding, concrete lower wall, large roller shutter doors

Looking for an Industry-Specific Solution?

Our steel structure buildings serve a wide range of industries. Explore our tailored solutions:

Frequently Asked Questions

  • Q

    What is the difference between a steel structure warehouse and a steel structure workshop?

    A

    A steel structure warehouse is primarily designed for static storage — optimized for racking systems, forklift access, and bulk cargo handling. A steel structure workshop is engineered for active production, with additional structural provisions for dynamic loads such as overhead cranes, machinery vibration, and processing equipment. KXD offers both, with the same high-quality fabrication standards applied to all projects.

  • Q

    Can KXD build a warehouse with an overhang canopy for loading and unloading?

    A

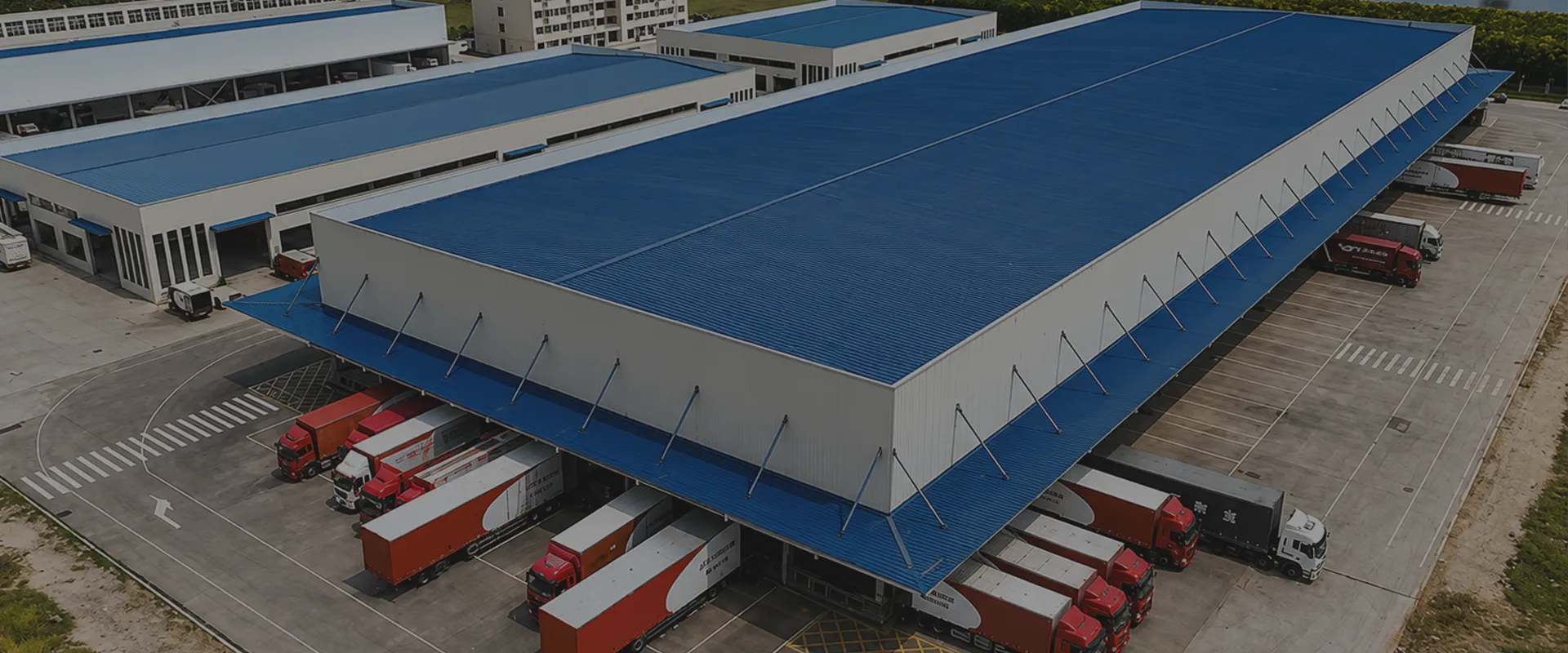

    Yes. KXD’s warehouse steel structure designs can incorporate large overhang canopies on one or multiple sides to shelter loading docks, vehicle access areas, and outdoor storage zones from rain and direct sunlight.

  • Q

    What insulation options are available for temperature-sensitive storage?

    A

    For warehouses storing temperature-sensitive goods, KXD offers EPS, PU, and Rock Wool sandwich panel cladding systems with insulation values customized to your climate zone and storage requirements.

Ready to Build Your Steel Structure Warehouse?

Tell us your project requirements and our engineering team will respond within 24 hours with a customized proposal.

Request a Custom Quote
