Industrial Logistics Warehouse & Metal Shed Solution

Designed for the rigorous demands of modern supply chain management and industrial operations, KXD’s steel warehouse solutions are the backbone of efficient logistics.

Get a Free Quote
HOME > Product
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage
Metal Shed Building for Logistics Warehouse Storage

Prefabricated Industrial Logistics Warehouse & Steel Storage Shed

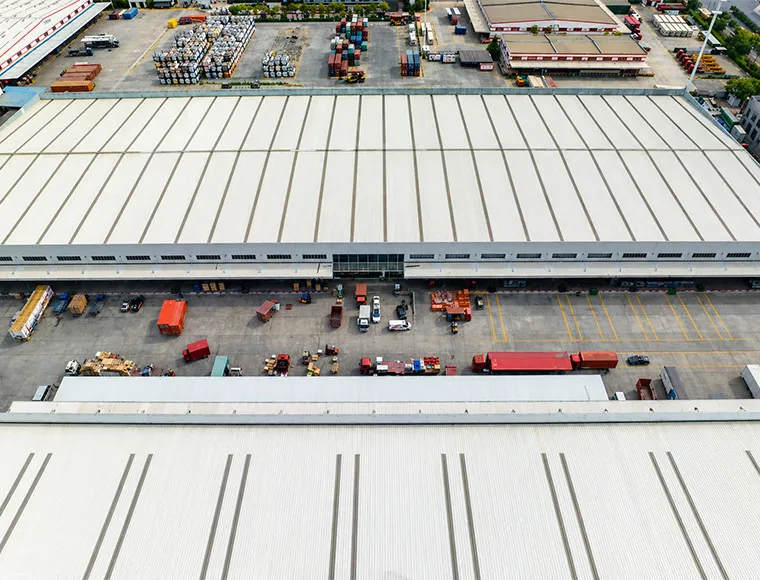

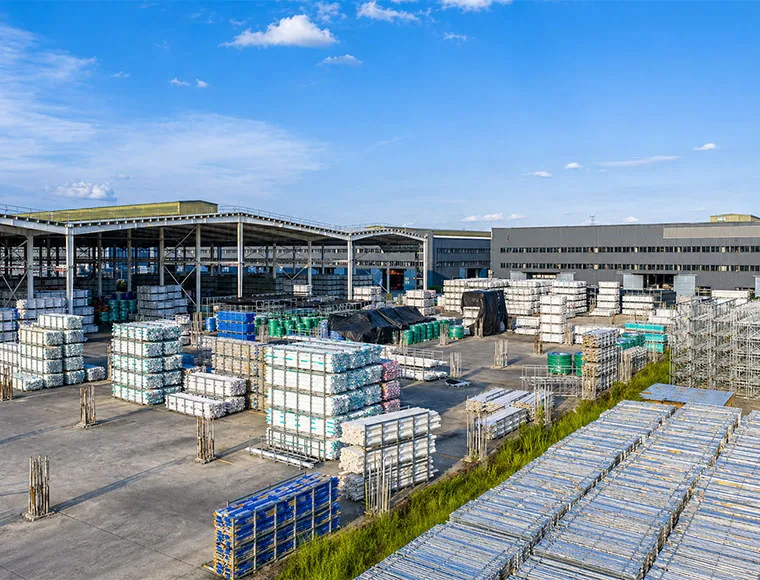

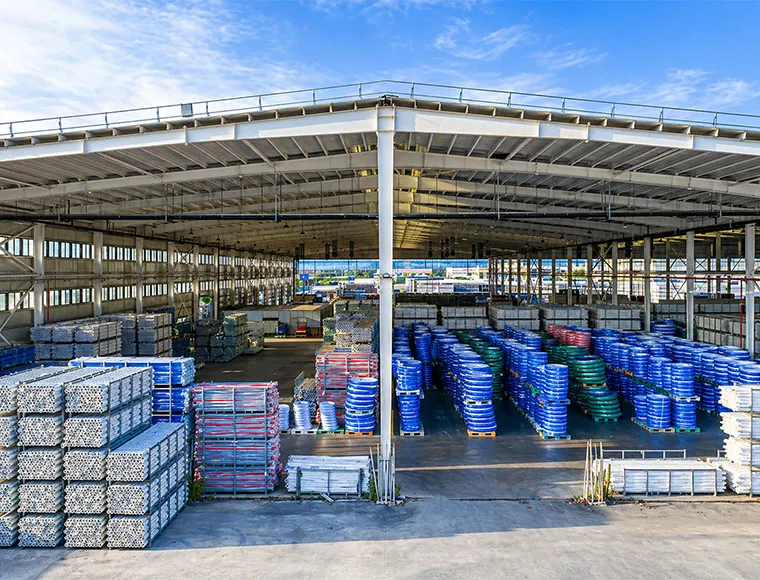

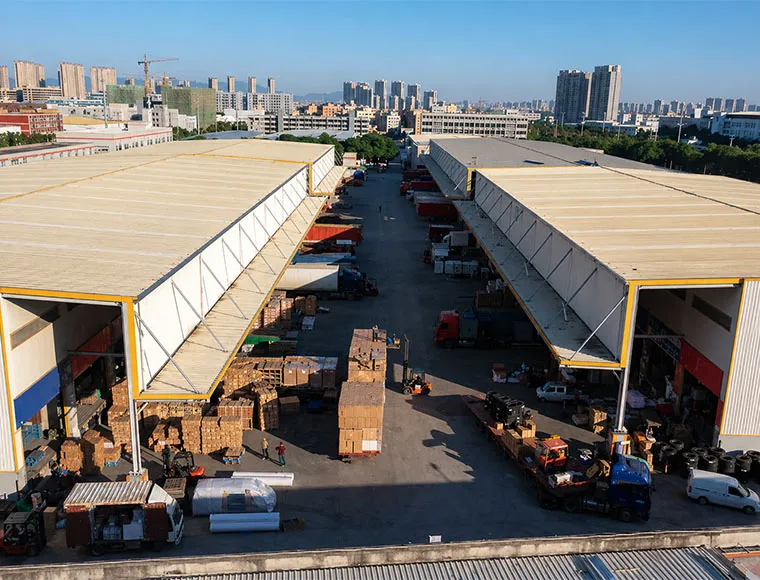

Designed for the rigorous demands of modern supply chain management and industrial operations, KXD’s steel warehouse solutions are the backbone of efficient logistics. As seen in our project galleries, these structures feature wide-span, column-free interiors and integrated loading dock systems, maximizing floor space and operational throughput. Built with high-strength structural steel frames (Q235/Q345), these warehouses are engineered to support heavy dynamic loads, overhead crane systems, and constant forklift traffic. With an optimized roof design incorporating industrial skylights for energy-efficient natural illumination, these structures provide a safe, durable, and cost-effective environment for storage, distribution, and manufacturing.

Get a Quote

Standard Specifications

The following parameters represent our standard manufacturing range. All specifications can be customized to meet your project requirements.

Feature Details Material/Standard
Model No. KXD-SSB130 Q235 / Q345 Steel
Main Frame H-section steel / Welded Steel Q235/Q345 Steel Plate (8-30mm)
Welding Method Automatic submerged arc welding GB50661-2011 / AWSD1.1
Rust Removal Sand blasting / Shot blasting Level SA 2.5
Surface Finish Alkyd / Epoxy paint or Hot-dip galvanized 100-275g/㎡ Galvanization
Connection Type Bolted (Main) / Welded (Secondary) M20, Grade 10.9 High-strength bolts
Service Life 20-50 Years Over 50 Years for Main Frame
Third Party Test SGS, BV, ITS Assessments Qualified for export

Fully Customizable to Your Requirements

One of the most critical aspects of a commercial steel building is its environmental control. A metal building restaurant or a steel structure office building requires high-performance thermal barriers to keep operational costs low.

PU/PIR Composite Panels: We utilize fluorine-free cyclopentane technology. These panels offer B1 grade fire resistance and superior airtightness. This is crucial for logistics warehouse sheds storing temperature-sensitive goods.

Metal Sheets: For uninsulated steel storage commercial buildings, our color-coated YX10-130-910 profiles provide a bright, professional appearance that eliminates the need for extra interior decoration.



Frequently Asked Questions

  • Q

    How long does the fabrication process take for a 5,000 sqm warehouse?

    A

    Generally, fabrication takes 30-40 days. Once the components arrive on-site, the assembly time depends on the local crew’s competence, but it is typically 60% faster than traditional builds.

  • Q

    What information is required for a quotation?

    A

    To provide an accurate price, we need the building’s length, width, height, and application. Crucially, we need local wind speed (km/h) and snow load (kg/m²) to ensure the engineered metal building is safe for your region.

  • Q

    Can KXD handle the installation?

    A

    Yes. We are one of the few commercial metal building contractors that can dispatch a standby erection team or technical supervisors to guide your local workers.

  • Q

    Are the buildings suitable for multi-storey applications?

    A

    Absolutely. Our multi-storey steel structure building solutions are ideal for offices, apartments, and shopping malls, offering rapid vertical construction.
