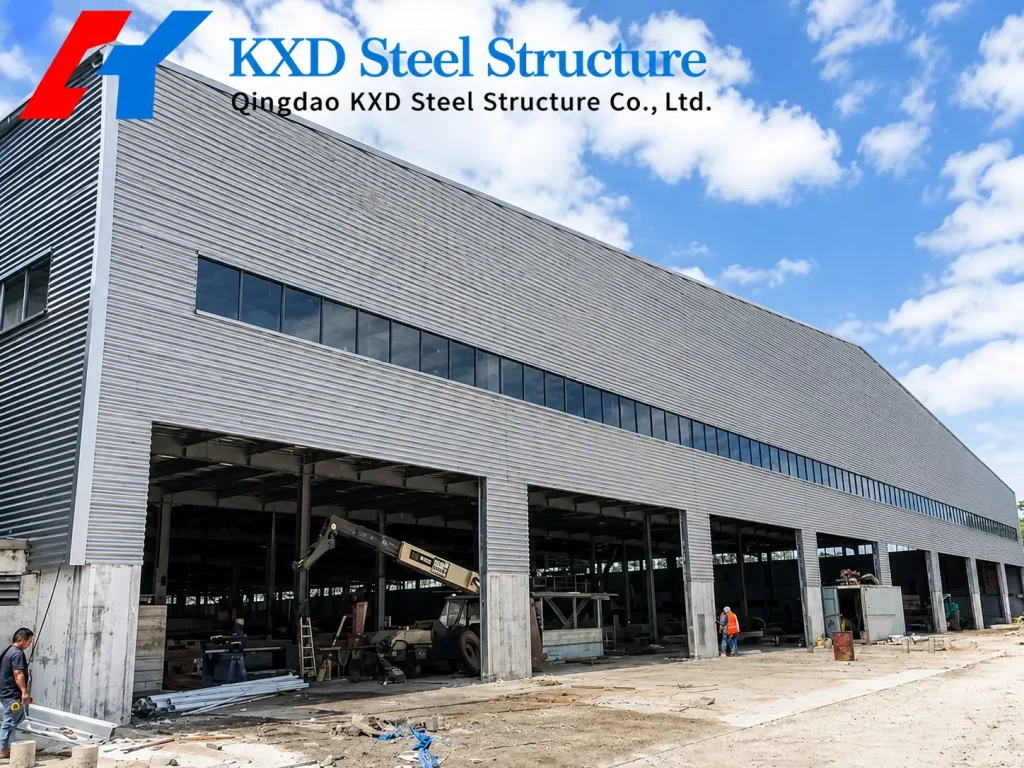

Project name: Large Span Prefabricated Warehouse Project in Panama
Project address: Panama
Project Brief Description:
This project is a large span prefabricated steel warehouse built in Panama to provide efficient storage space and reliable structural performance for long-term industrial and logistics use. KXD supplied a complete steel structure solution for the project, using a strong and practical building system designed for warehouse operation, cargo handling, and flexible internal space planning.
The main steel frame uses Q235 / Q355 welded H-section steel for both columns and beams, while the secondary frame includes C and Z purlins, knee braces, tie rods, round bar bracing, and vertical/horizontal supports. The roof and wall system can be configured with EPS sandwich panels, glass fiber sandwich panels, PU panels, rock wool panels, or color steel sheet cladding, allowing the project to balance insulation, durability, and budget requirements. Doors and windows can also be selected according to functional needs, including aluminum alloy windows, PVC windows, sliding doors, rolling metal doors, and personal access doors.
Based on the supplied specifications, the warehouse is designed with strong environmental adaptability, including roof live load performance of 120 kg/sqm, wind resistance up to Grade 12, and earthquake resistance up to Grade 8. The structure is suitable for temperatures from -50°C to +50°C and is designed for a service life of up to 50 years. Finishing options include a wide range of colors and textures, with surface protection available through alkyd painting, epoxy zinc coating, or galvanizing.
This Panama warehouse project reflects KXD’s ability to deliver large-span, durable, and customized prefabricated warehouse buildings for overseas markets. With factory-fabricated components, efficient transportation, and fast on-site assembly, KXD helps clients reduce construction time while creating dependable steel warehouse facilities for long-term use.
| tems |
Specification |
| Main Steel Frame |
Column |
Q235, Q355 Welded H Section Steel |
| Beam |
Q235, Q355 Welded H Section Steel |
| Secondary Frame |
Purlin |
Q235 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
Roof Panel |
EPS Sandwich Panel /Glass Fiber Sandwich Panel /PU/Single color sheet |
| Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
Window |
Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Downspout |
PVC |
| Live load on Roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Temperature |
Suitable temperature.-50ºC~+50ºC |
| Certification |
CE, SGS, ISO9001:2008, ISO14001:2004 |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting |
| (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
To learn more about how KXD STEEL can support your next big project, contact us today.
