KXD Steel has completed an advanced prefabricated industrial cold storage facility in Mexico, designed to support local cold chain logistics, fresh produce storage, and temperature-controlled distribution.
As cold chain demand continues to grow, logistics operators need more than a basic warehouse. They need a complete steel structure warehouse system that combines structural strength, thermal insulation, refrigeration performance, high-density storage, and efficient material handling. This Mexico project reflects KXD Steel’s capability in delivering customized industrial steel buildings for demanding logistics applications.

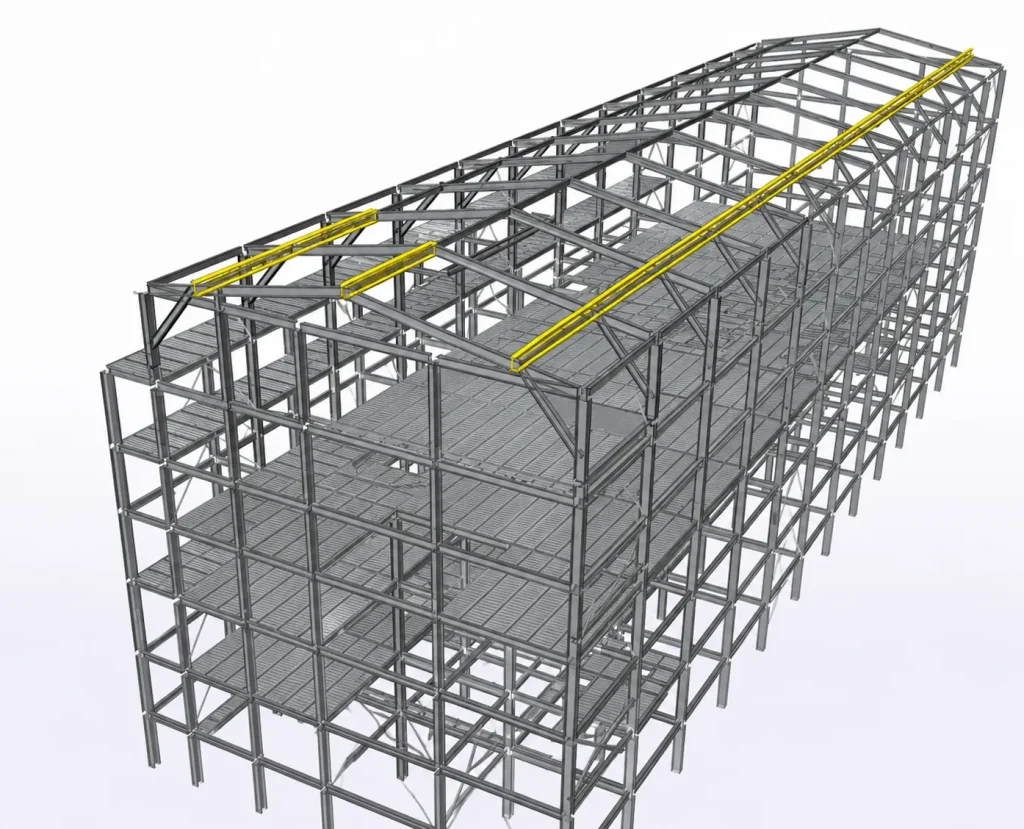

Custom Steel Structure Engineering and 3D Modeling
Before fabrication, the project was developed through detailed 3D structural modeling. Every primary beam, roof truss, column, and purlin was designed to match the building layout, local environmental conditions, and cold storage operation requirements.
This engineering process helped optimize the load-bearing performance of the steel building system, improve seismic resistance, and support fast on-site bolted assembly.
For a cold storage project, structural accuracy is especially important. The steel frame must support insulated panels, refrigeration equipment, high-bay racking, roof-mounted systems, and daily forklift operation.
High-Bay Racking for Better Space Utilization
The cold storage area uses high-bay narrow aisle pallet racking systems to maximize storage capacity. This design increases the number of pallet positions while reducing wasted floor space.
For cold chain logistics, this is a major advantage. By improving vertical storage efficiency, the facility can reduce the total air volume that needs cooling, helping lower energy consumption per pallet position.
This makes the project more than a simple prefab warehouse. It is a practical cold chain storage solution designed around operating cost, storage density, and logistics flow.
High-Performance Insulation and Material Handling
The facility uses high-density PU sandwich panels to improve thermal resistance and reduce thermal bridging between different temperature zones.
Proper insulation for steel building projects is critical in cold storage applications. Poor insulation can increase refrigeration load, cause condensation problems, and raise long-term operating costs.
The loading and staging area is also equipped with high-speed insulated roll-up doors. These doors help reduce air exchange during forklift loading and unloading, supporting stable cold room temperatures and better energy control.
Industrial Refrigeration and Site Integration
The project includes roof-mounted refrigeration infrastructure, including external condensing units and commercial cooling systems. These systems are installed on reinforced structural areas to ensure stable performance and safe long-term operation.

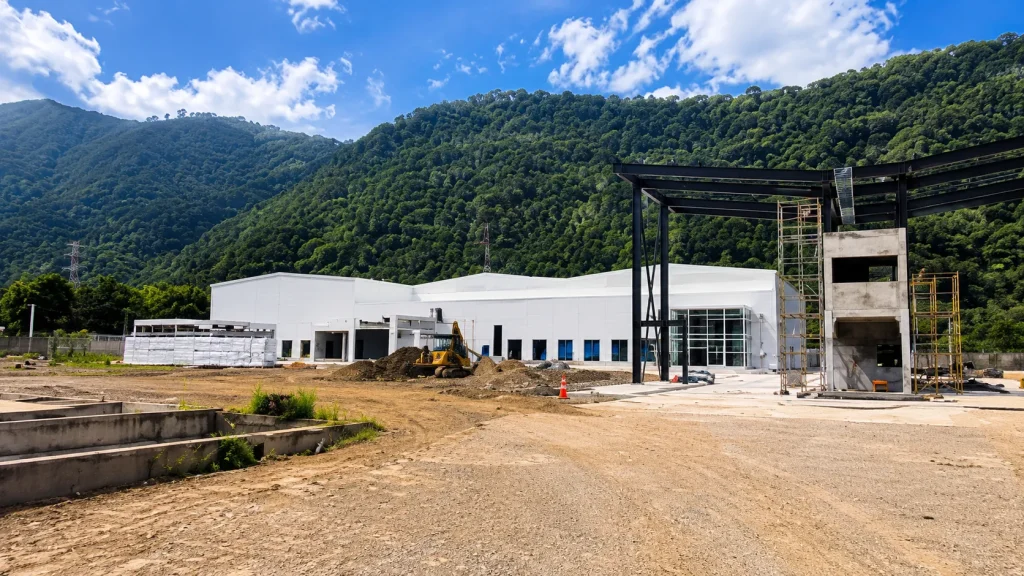

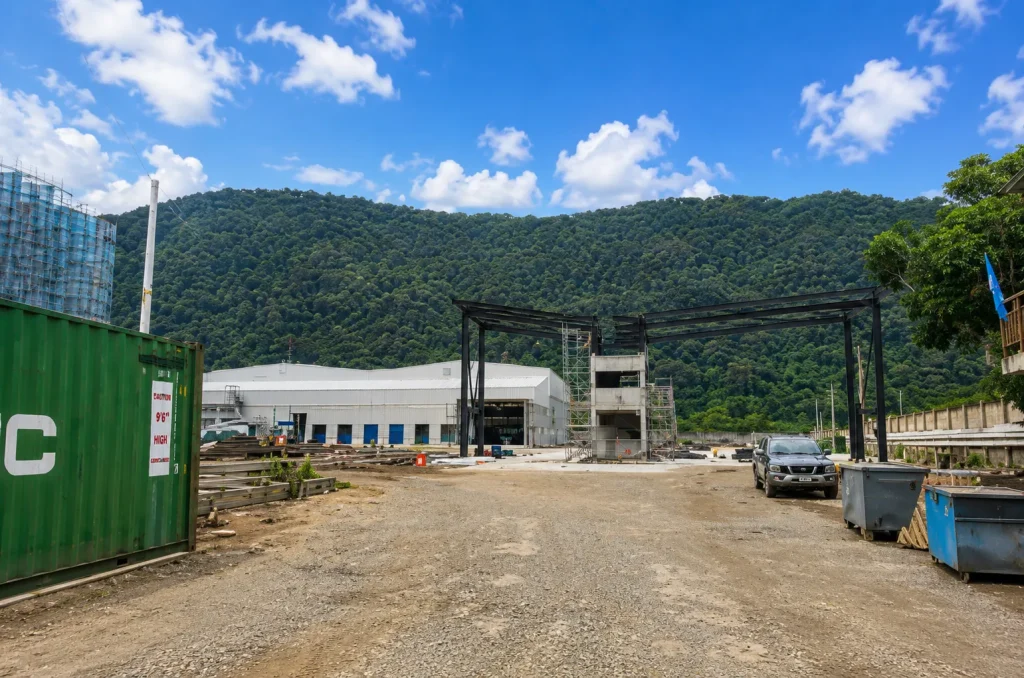

The site layout also considers truck access, loading zones, staging yards, perimeter security, and logistics movement. From the project photos, the facility is integrated into a challenging local landscape, showing the importance of early site planning and engineering coordination.
For buyers planning a steel warehouse building or prefabricated warehouse building, these details are important because cold storage performance depends on both building structure and system integration.
Suitable Applications
This type of prefabricated cold storage steel building is suitable for:
- Fresh produce cold storage
- Frozen food warehouses
- Cold chain logistics centers
- Fruit and vegetable distribution hubs
- Meat and seafood storage facilities
- Pharmaceutical temperature-controlled warehouses
- Industrial refrigeration warehouses
- High-bay storage logistics facilities
It can also be adapted into a broader industrial metal building, Logistics Warehouse Shed, or temperature-controlled steel structure warehouse project.
Why Choose KXD Steel
KXD Steel provides customized steel structure solutions for global B2B clients, including industrial warehouses, commercial buildings, logistics facilities, cold storage warehouses, and prefabricated steel buildings.
For this Mexico cold storage project, KXD delivered not only the steel structure, but also a complete material and engineering package covering structural detailing, insulated panels, industrial doors, racking coordination, and cold chain infrastructure support.
As a professional steel structure manufacturer, KXD helps clients build practical, durable, and efficient facilities based on project location, storage needs, insulation requirements, equipment layout, and logistics flow.
Conclusion
The Mexico prefabricated industrial cold storage facility demonstrates how steel structure engineering, thermal insulation, refrigeration planning, and high-bay racking can work together in one integrated cold chain logistics solution.
For global clients planning a steel structure warehouse, industrial steel building, prefab warehouse, or temperature-controlled logistics facility, KXD Steel can provide customized support from engineering design to fabrication and project delivery.
