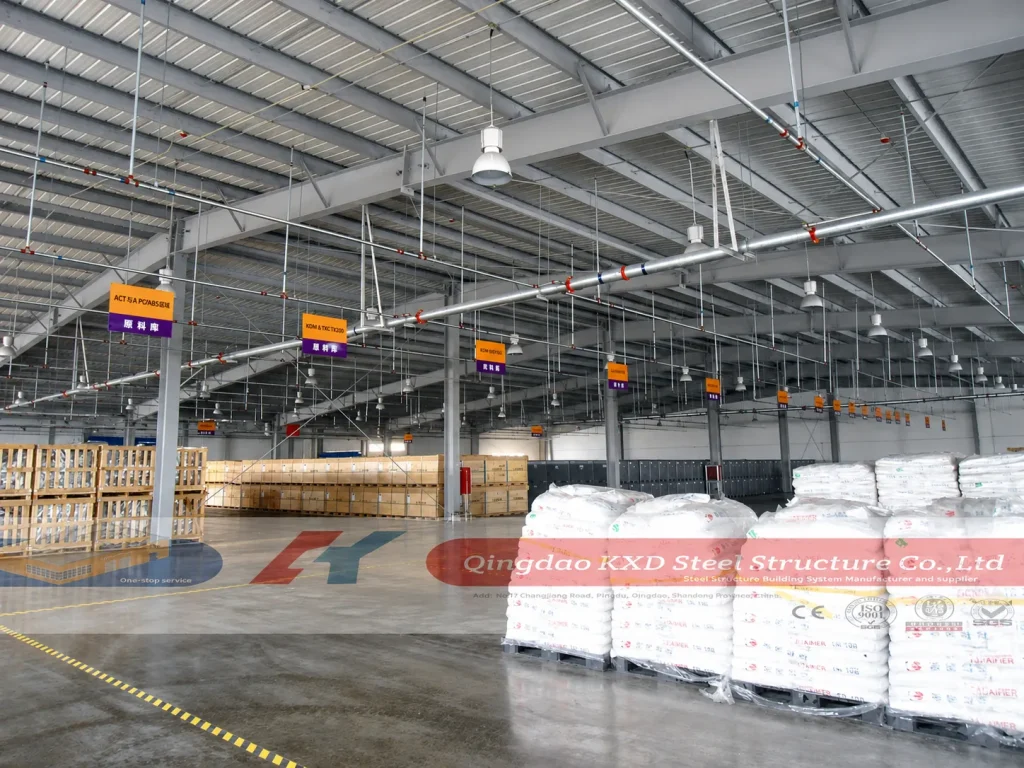

Project name: Large Rubber Tire Processing Factory Workshop
Project address: China
Project Brief Description:
This project is a large steel structure workshop building designed for rubber tire processing and industrial production use. As a factory workshop, the building needs to provide reliable structural strength, practical internal space, and durable enclosure performance to support daily manufacturing, equipment operation, material handling, and storage requirements.
The building system can be customized according to project width, length, and height, and supports different structural layouts such as single slope, double slope, multi-slope, single span, double-span, multi-span, single-floor, double-floor, and multi-floor configurations. The main steel frame uses Q345 / Q235 structural steel, with welded H-section steel components finished by painting or galvanizing, helping improve structural stability and long-term durability.
For the roof and wall enclosure, the project can use corrugated steel sheets or insulated sandwich panels such as EPS, rock wool, glass wool, or PU panels, depending on the factory’s insulation, fire resistance, ventilation, and cost requirements. The building can also be equipped with UPVC/PVC or aluminum alloy windows, sliding doors or roller shutter doors, skylight panels, ventilation systems, gutters, downpipes, and high-strength bolt connections.
This case reflects KXD’s ability to provide customized industrial steel structure buildings for manufacturing clients. With prefabricated steel components, flexible layout design, and efficient on-site assembly, the solution helps shorten construction time, reduce labor work, and create a durable production space suitable for long-term industrial operation.
| Specifications |
| 1)Size(m): |
Width * Length * Height; |
| 2)Type: |
Single slope, double slope, Multi-slope; |
| Single span, double-span, Multi-span; |
| Single floor, double-floor, Multi-floor; |
| 3) Base: |
steel foundation bolts |
| 4) Steel frame: |
Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; |
| Straight cross-section or Variable cross-section; |
| steel welded H section painted or galvanized. |
| 5) Bracing: |
X-type or V-type or other type bracing made from angle, round bar, etc ; |
| 6) Wall & Roof Purlin: |
C section channel or Z section channel ,Size from C80~C300; Z100~Z300; |
| 7) Roof & wall cladding |
Single color corrugated steel sheet 0.326~0.7mm thickness; |
| Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm; |
| recommend coating PVDF SMP HDP PE |
| 8)Window: |
UPVC/PVC or Aluminum Alloy window frame with glass. |
| 9)Door: |
Exterior door:Sliding or Roller shutter door. |
| Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame |
| 10) Gutter material: |
Color steel sheet or galvanized steel or stainless steel; |
| 11)Rainspout: |
PVC pipe |
| 12)Connection |
high strength bolts ,intensive bolt,self-drilling screws. |
| 13)Accessories: |
Skylight panel, Ventilation, Fasteners etc |
| 14)Surface process: |
Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized |
| 15) Packing: |
Main steel frame without packing load in 40′ GP, roof and wall panel load in 40′ HQ |
To learn more about how KXD STEEL can support your next big project, contact us today.
