Professional Supplier of Food Refrigerated Storage Warehouse
General Information
Cold storage type: raw material freezing, cold storage
Unit brand: Hanbell Cryogenic Screw, German Bitzer

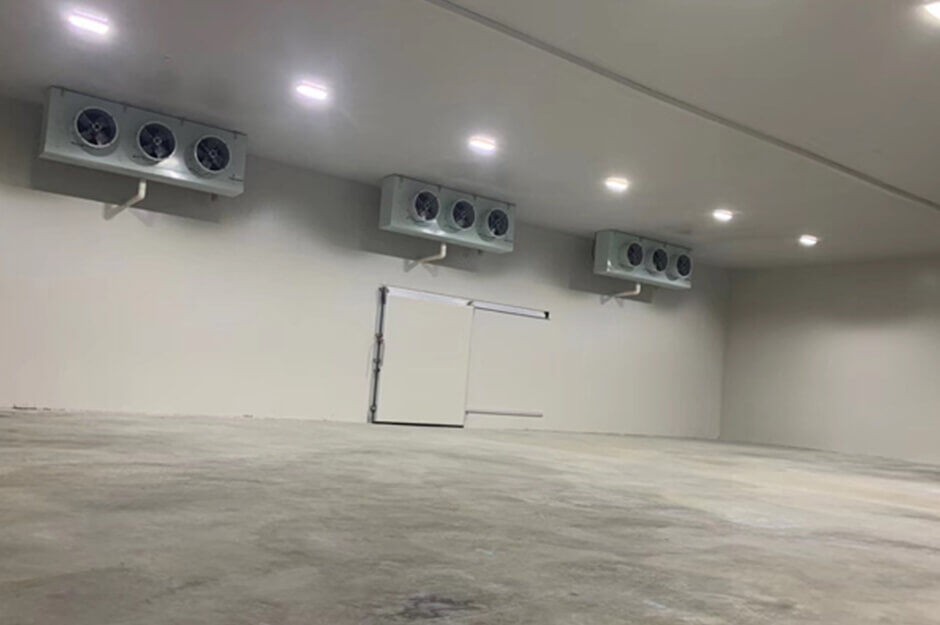

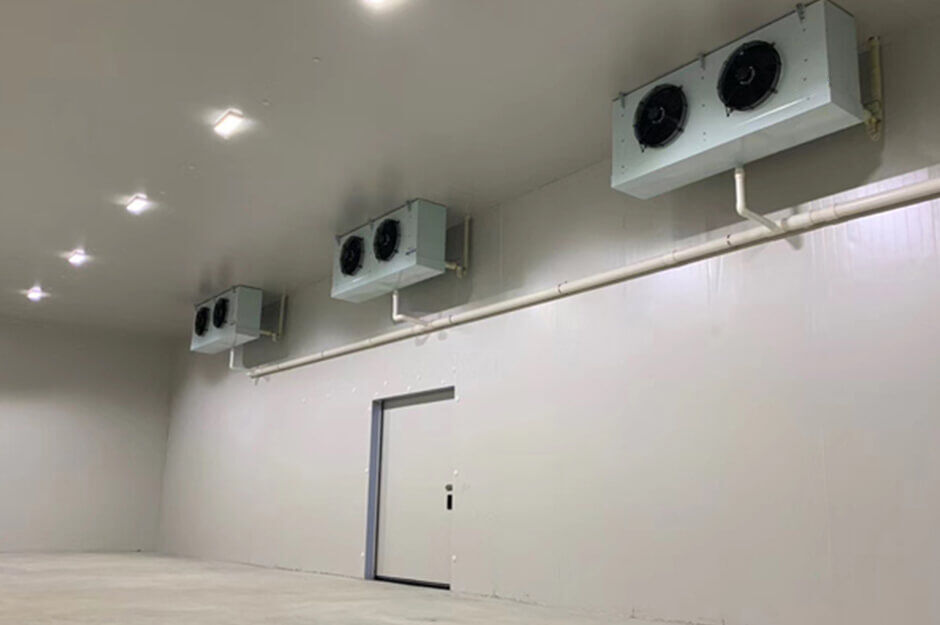

Cooling method: air cooler.
Condensation method: evaporative cooling
Project details: This cold storage project includes 1 freezer 1500m³ (-18℃), 1 cold storage 700m³ (2℃)

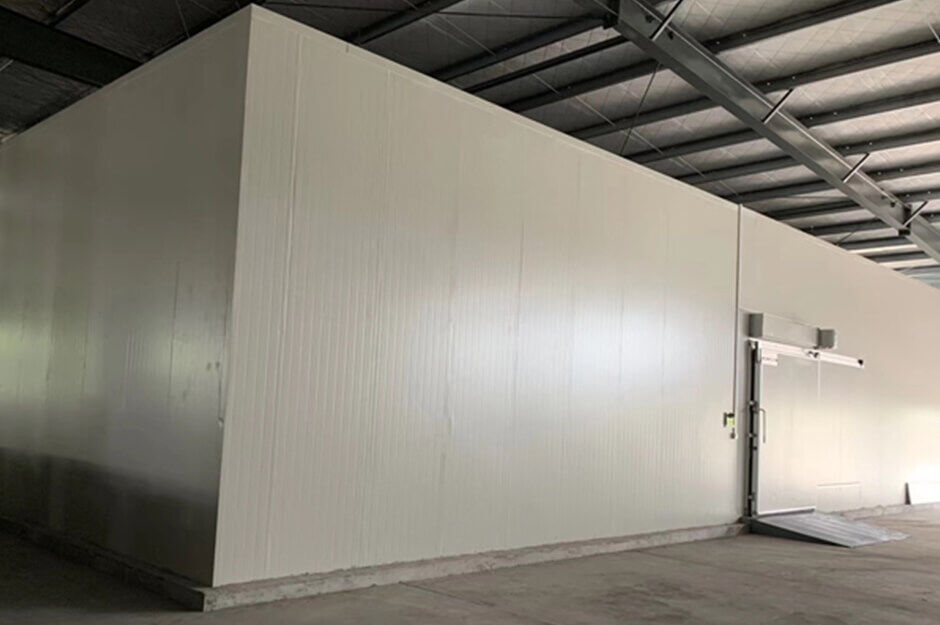

Project Overview: Yiya Food Cold Storage Project, the cold storage area is 540 square meters, the height of the cold storage body is 5 meters, and the air cooler is used. The defrosting method adopts water flushing.
The cold storage refrigeration equipment adopts Hanbell low-temperature screw and Bitzer unit, evaporative cooling, and the electronic control adopts the Internet of Things remote control box, which is convenient for us to check the operation status of the cold storage at any time, and truly realizes the unattended state of the cold storage
Superior Prefabricated Steel Building for Your Demand
YOUR BENEFITS AT A GLANCE
● Free span up to 60 m and various sidewall heights
● Flat or roof pitch of 10° or 22° or multi-roof.
● Aesthetic integration of office rooms to maximize space
● Easy integration of mezzanines, crane bridges, solar panels
● Climate control thanks to different types of insulation sandwich panel
● Short time erection and seismic resistance
● Various solutions to allow natural light inside your building
● Easy relocation, extension and adaptation
The construction of steel structure workshop (also called steel hall) is mainly divided into the following parts:
❶ Embedded parts to stabilize the structure of the complete plant
❷ Columns as primary steel members are generally H section welded steel coating with epoxy or alkyds paint for corrosion resistance
❸ For beams as primary steel members, generally H section welded steel are used. The height of the middle ridge is determined according to the span of the beam.
❹ Purlin as secondary steel members: C-shaped galvanized steel and Z-shaped galvanized steel are generally used.
❺ Supports and braces are usually round steel coating anti-corrosion paint.
❻ Roof and wall cladding system. The first one is a single separate tile (PPGI tile) without insulation layer. The second type is sandwich composite panel. Polyurethane, glass wool, rock wool and EPS are sandwiched between the two layers of color-coated metal sheet to play the role of warming in winter and cooling in summer, and also has the effect of sound insulation and fire prevention.
The main advantages of steel structure workshop are:
Light weight, high strength and large span:
Although the density of steel is higher than other building materials, its strength is very high. Under the same force, the steel structure has a small dead weight and can be made into a structure with a larger span.
Short construction time:
the structural parts of the plant are mainly produced in the factory and prefabricated, and then installed on the site. The erected work is convenient and the construction is convenient.
High fire resistance:
When the surface temperature of the steel is within 150℃, its strength changes little. When the temperature exceeds 150℃, its strength decreases significantly. Generally, fire retardant coatings are applied to the surface of steel structures to form a protective film to increase the fire resistance limit of the components. Of course, the reasonable division of fire compartments and the use of fire shutters are also very important.
Sound insulation and heat preservation:
Fill the metal roof with sound insulation material (usually glass wool, EPS, rock wool, polyurethane), or add heat insulation reflective paint on the metal tile surface.
