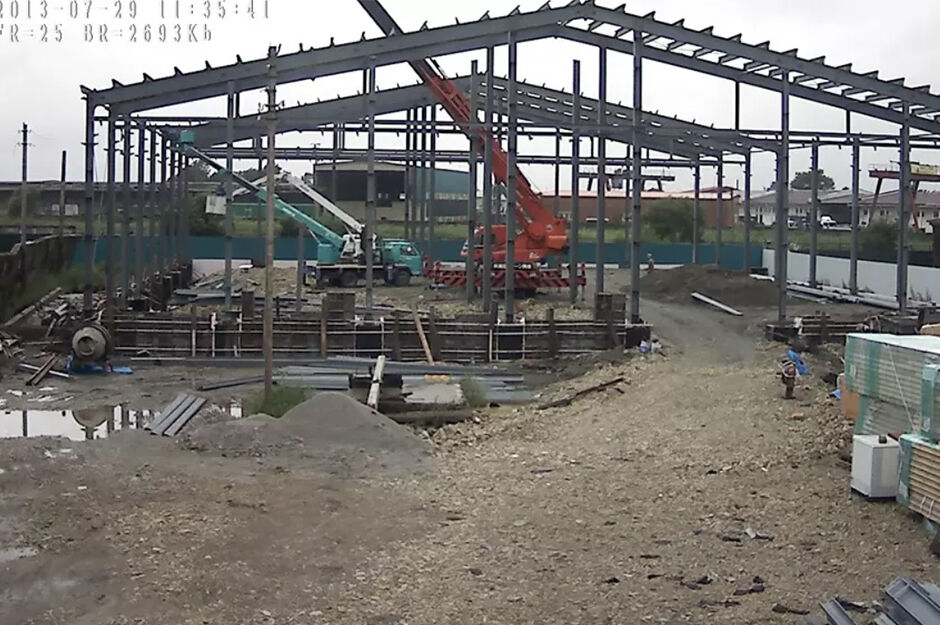

Steel Structure Refrigerated Warehouse


General Information


Location: Russia

Area:1529 m2 44.26 * 33.2 *7.3

Project Time: 2013


Steel structure refrigerated warehouse is used for fruit vegetable cold storage

Russia refrigerated warehouse details:

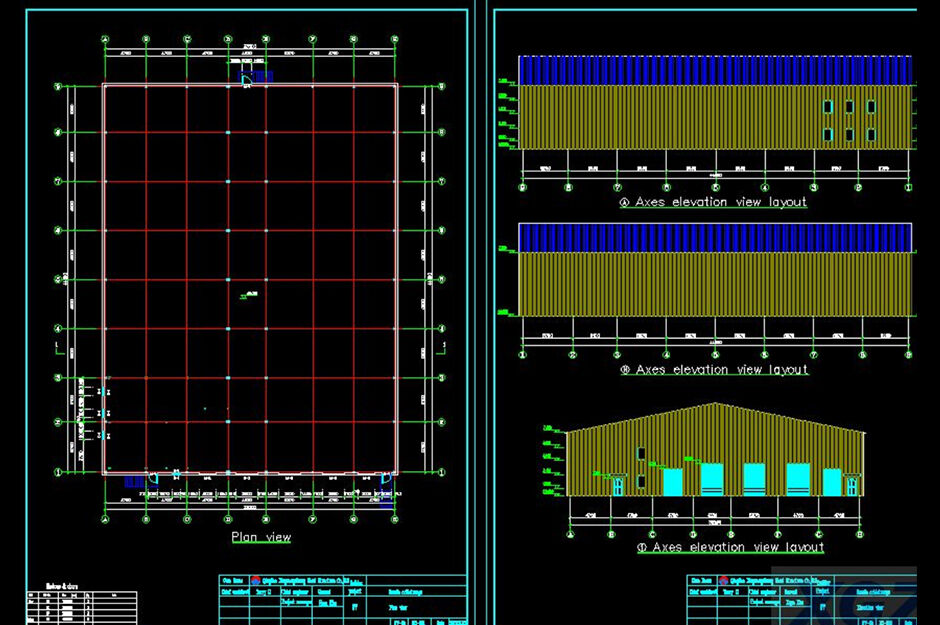

1. Size: 33.7*44.2*7m (Length*Width*Eave Height)

2. Primary steel structure: welded H column and beam, painted, Q345B

3. Roof purline: Z section steel, double painted

4. wall purline: C section steel, double painted

5. Exterior roof panel: V-840, 0.55mm color steel sheet, sea blue color

6. Exterior wall panel: V-840, 0.6mm color steel sheet, sea blue color

7. Inner panel of roof and wall 200mm thickness of PU Sandwich Panel

8. Window: plastic-steel door(double layer of glass)

9. Door: Electric rolling door

10. Service: fruit vegetable cold storage warehouse design, fabrication and construction.


Superior Prefabricated Steel Building for Your Demand

YOUR BENEFITS AT A GLANCE

● Free span up to 60 m and various sidewall heights

● Flat or roof pitch of 10° or 22° or multi-roof.

● Aesthetic integration of office rooms to maximize space

● Easy integration of mezzanines, crane bridges, solar panels

● Climate control thanks to different types of insulation sandwich panel

● Short time erection and seismic resistance

● Various solutions to allow natural light inside your building

● Easy relocation, extension and adaptation

The construction of steel structure workshop (also called steel hall) is mainly divided into the following parts:

Embedded parts to stabilize the structure of the complete plant

Columns as primary steel members are generally H section welded steel coating with epoxy or alkyds paint for corrosion resistance

For beams as primary steel members, generally H section welded steel are used. The height of the middle ridge is determined according to the span of the beam.

Purlin as secondary steel members: C-shaped galvanized steel and Z-shaped galvanized steel are generally used.

Supports and braces are usually round steel coating anti-corrosion paint.

Roof and wall cladding system. The first one is a single separate tile (PPGI tile) without insulation layer. The second type is sandwich composite panel.  Polyurethane, glass wool, rock wool and EPS are sandwiched between the two layers of color-coated metal sheet to play the role of warming in winter and cooling in summer, and also has the effect of sound insulation and fire prevention.

The main advantages of steel structure workshop are:

Light weight, high strength and large span:

Although the density of steel is higher than other building materials, its strength is very high. Under the same force, the steel structure has a small dead weight and can be made into a structure with a larger span.

Short construction time:

the structural parts of the plant are mainly produced in the factory and prefabricated, and then installed on the site. The erected work is convenient and the construction is convenient.

High fire resistance:

When the surface temperature of the steel is within 150℃, its strength changes little. When the temperature exceeds 150℃, its strength decreases significantly. Generally, fire retardant coatings are applied to the surface of steel structures to form a protective film to increase the fire resistance limit of the components. Of course, the reasonable division of fire compartments and the use of fire shutters are also very important.

Sound insulation and heat preservation:

Fill the metal roof with sound insulation material (usually glass wool, EPS, rock wool, polyurethane), or add heat insulation reflective paint on the metal tile surface.
