China Hehua Logistics Warehouse
General information:
This is a logistics warehouse designed by KXD company for a logistics storage enterprise in China. The whole construction period is four months. KXD company will design, manufacture and construct it.

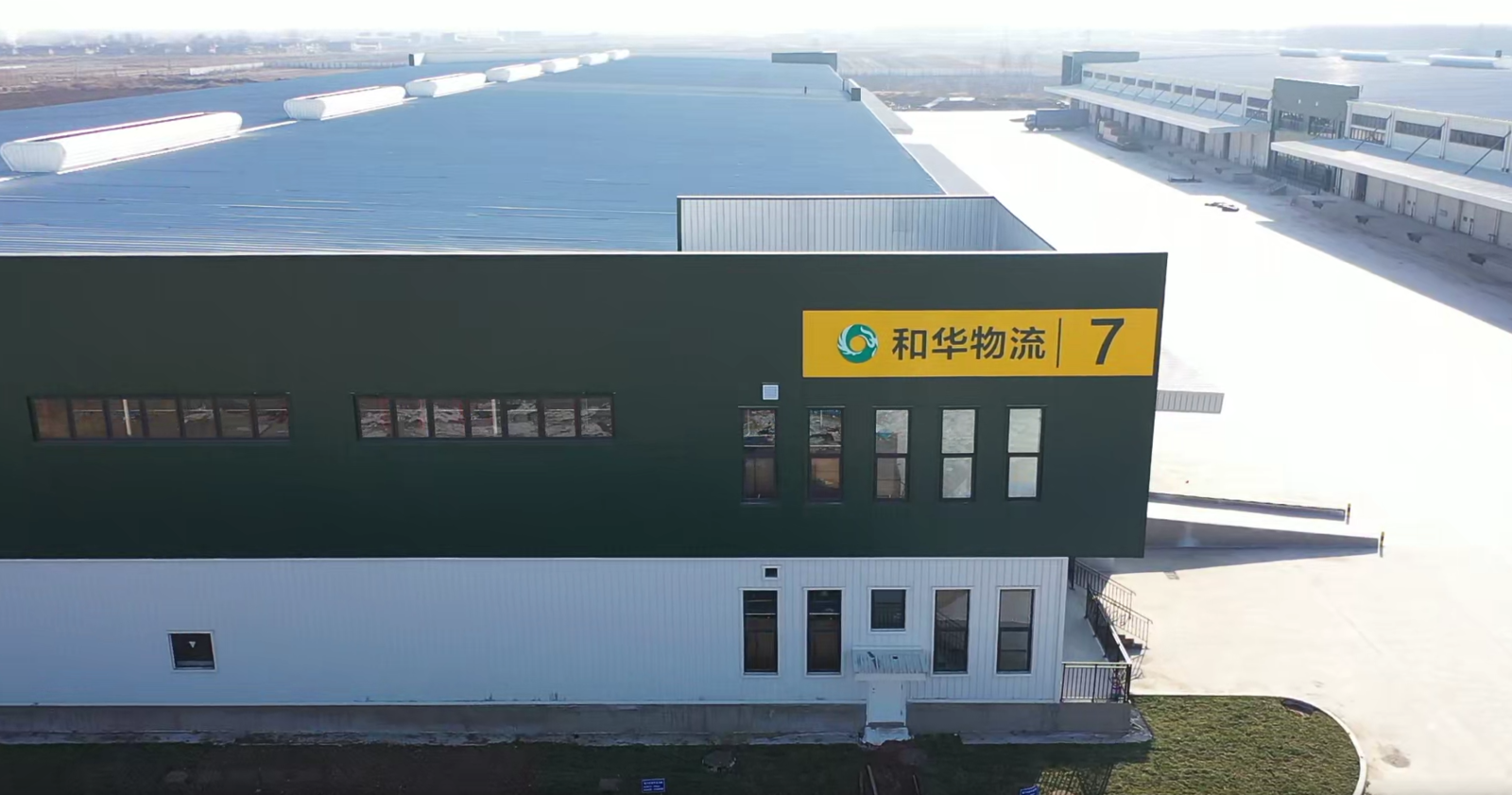

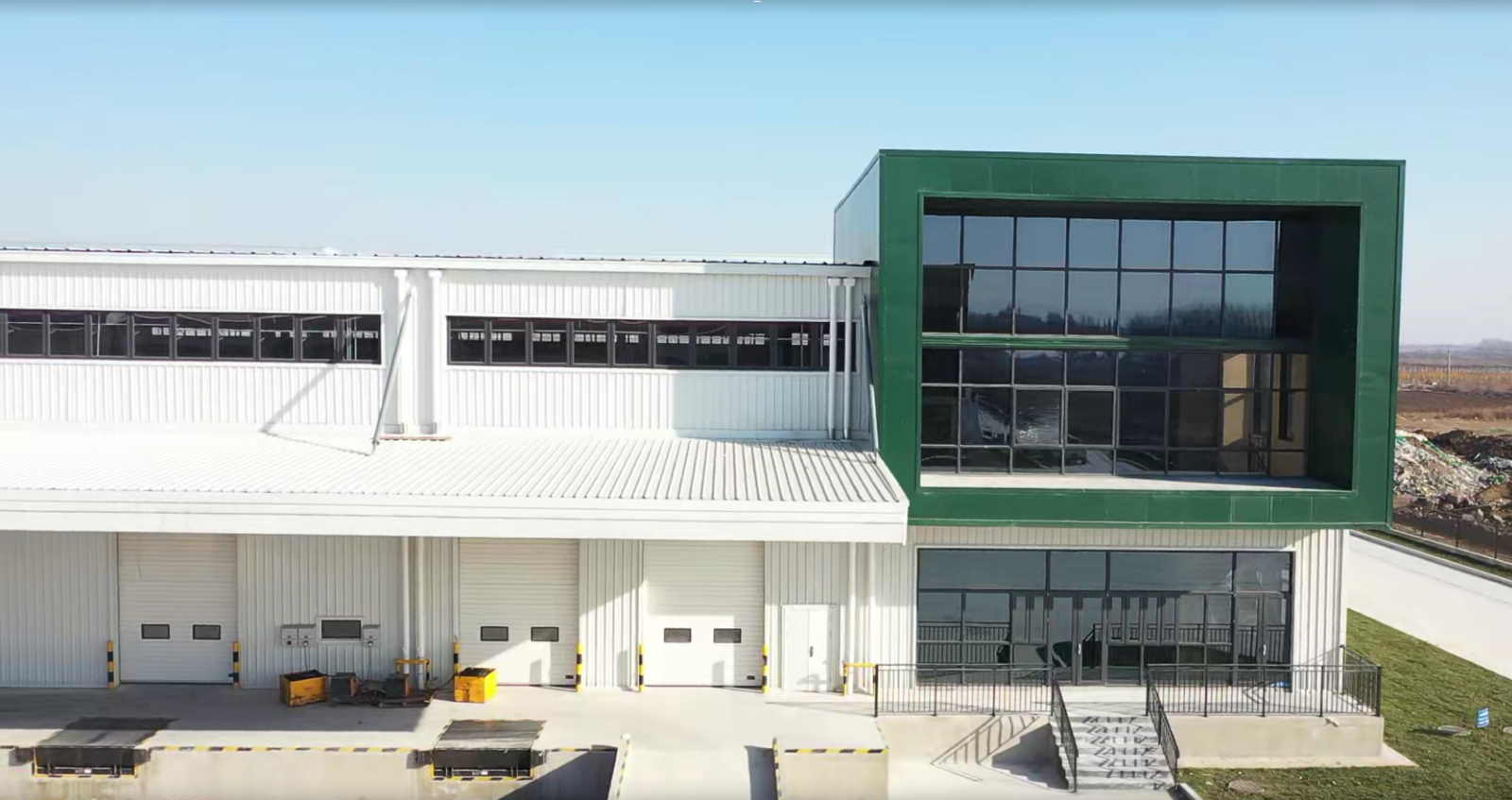

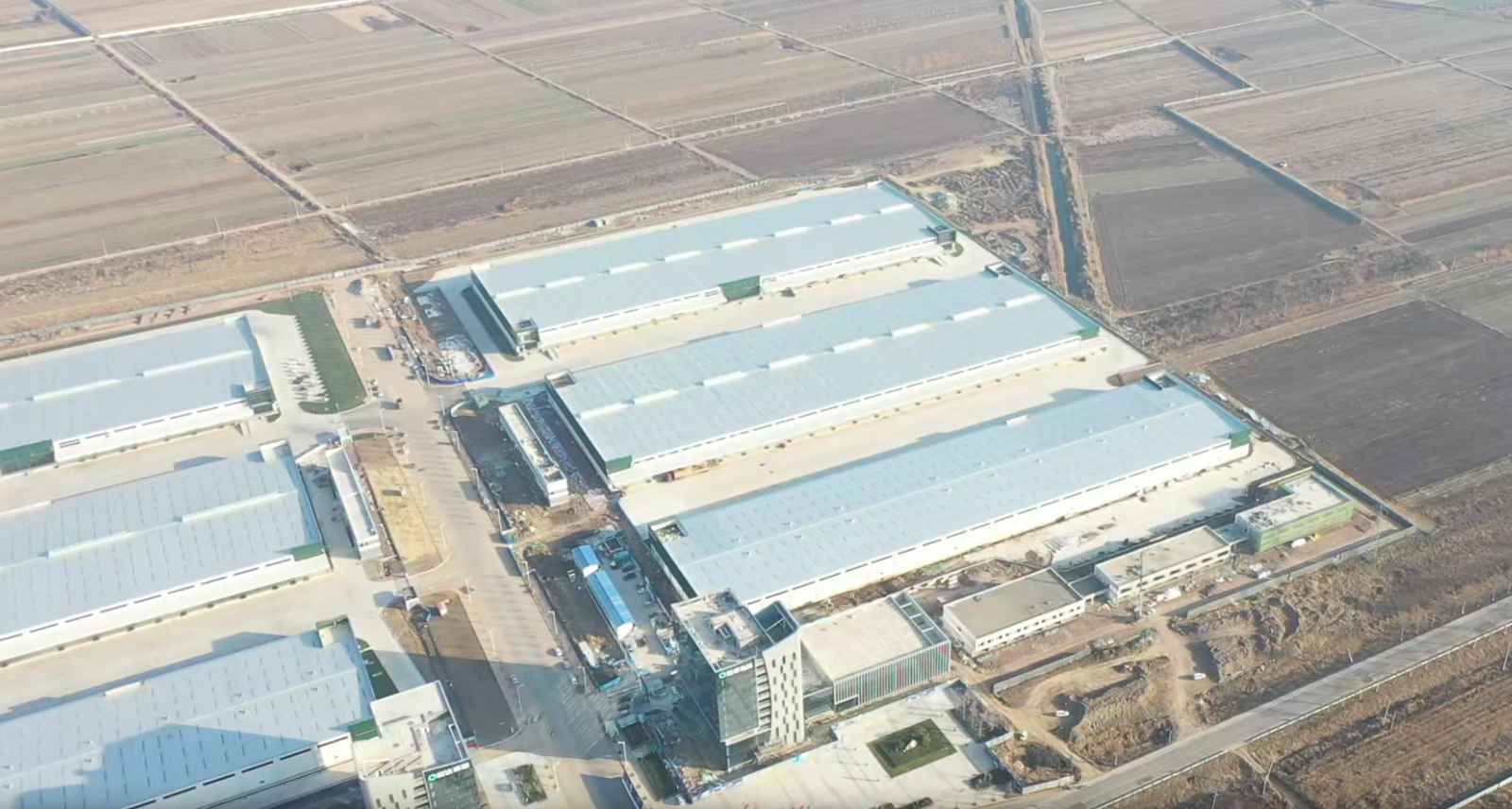

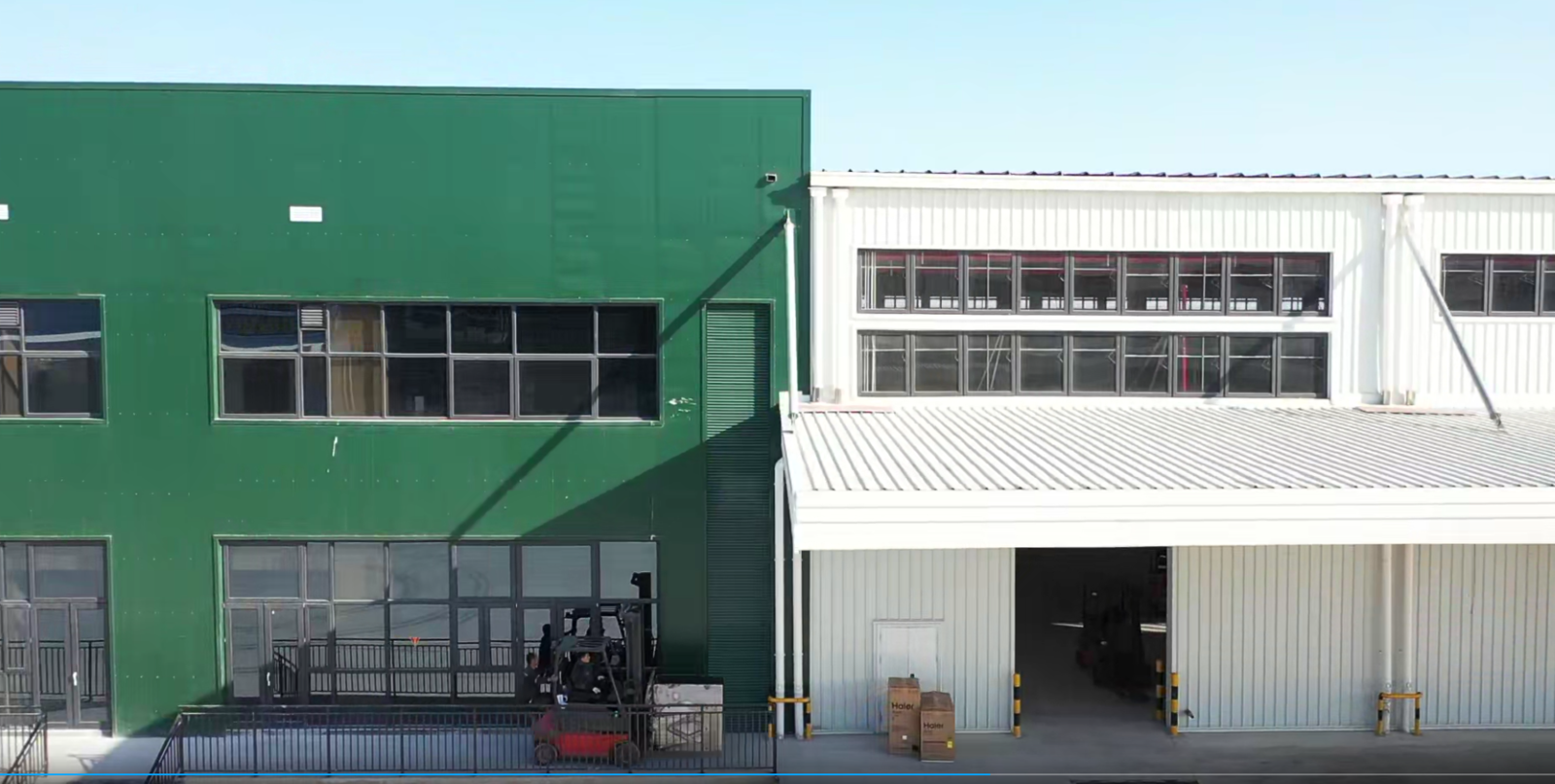

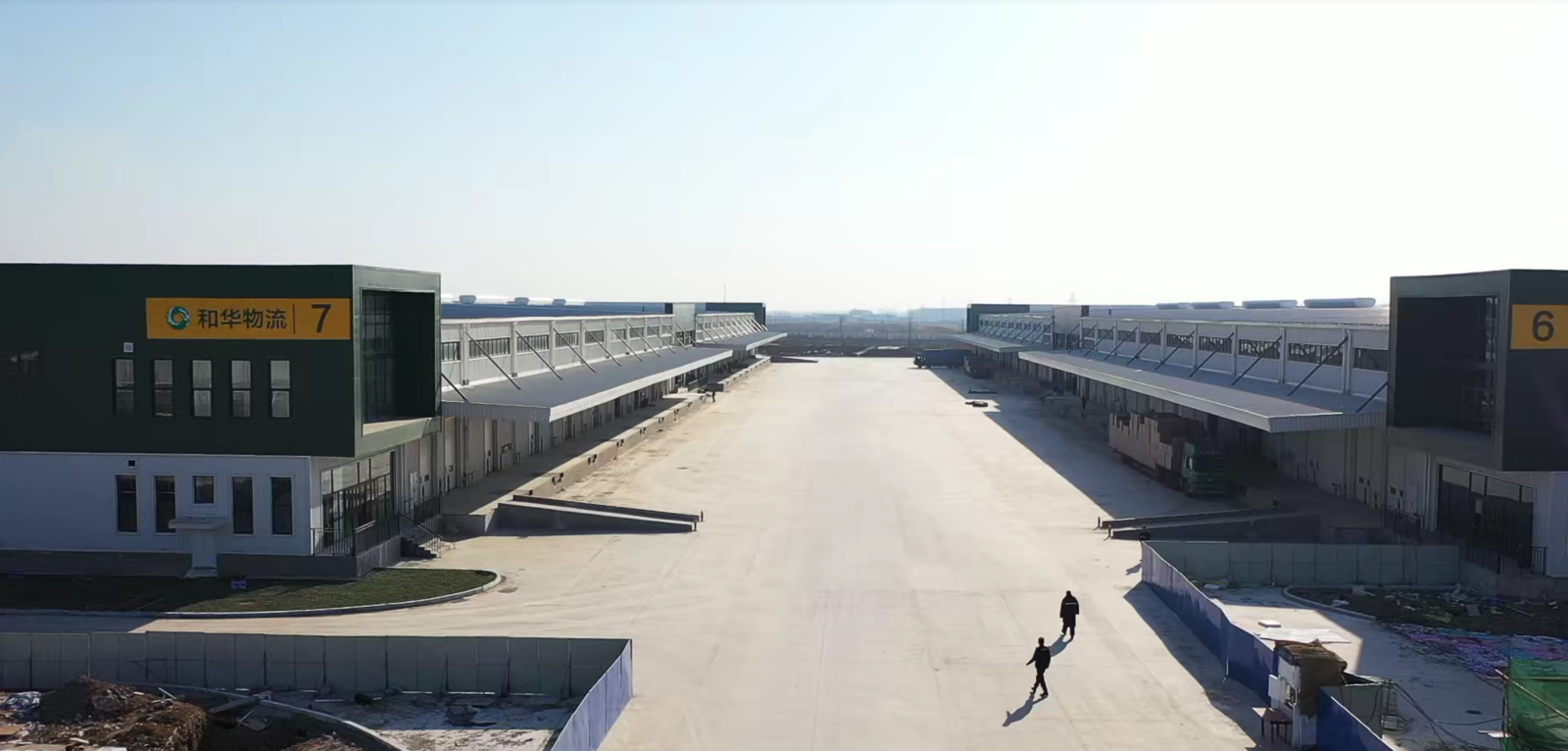

The Hehua Logistics Warehouse Building is used for the storage and turnover of goods. The main load-bearing structure is steel components, and the wall and roof are made of profiled color steel plates. All steel structure components are processed in the workshop and then transported to the construction site for assembly. With the development of e-commerce, more and more companies are considering building logistics warehouses to circulate goods.
The Advantage
The construction and installation of the prefabricated steel warehouse building are straightforward and fast — the steel columns fixe to the foundation through embedded anchor bolts. The steel columns and roof beams, roof beam, and roof beam are all connected by bolts. The bracing and purlin are the same. Only door and window columns may require field welding. During the entire installation process, there is no dust and noise. It is the building with the least impact on the surrounding environment.
Superior Prefabricated Steel Building for Your Demand
YOUR BENEFITS AT A GLANCE
● Free span up to 60 m and various sidewall heights
● Flat or roof pitch of 10° or 22° or multi-roof.
● Aesthetic integration of office rooms to maximize space
● Easy integration of mezzanines, crane bridges, solar panels
● Climate control thanks to different types of insulation sandwich panel
● Short time erection and seismic resistance
● Various solutions to allow natural light inside your building
● Easy relocation, extension and adaptation

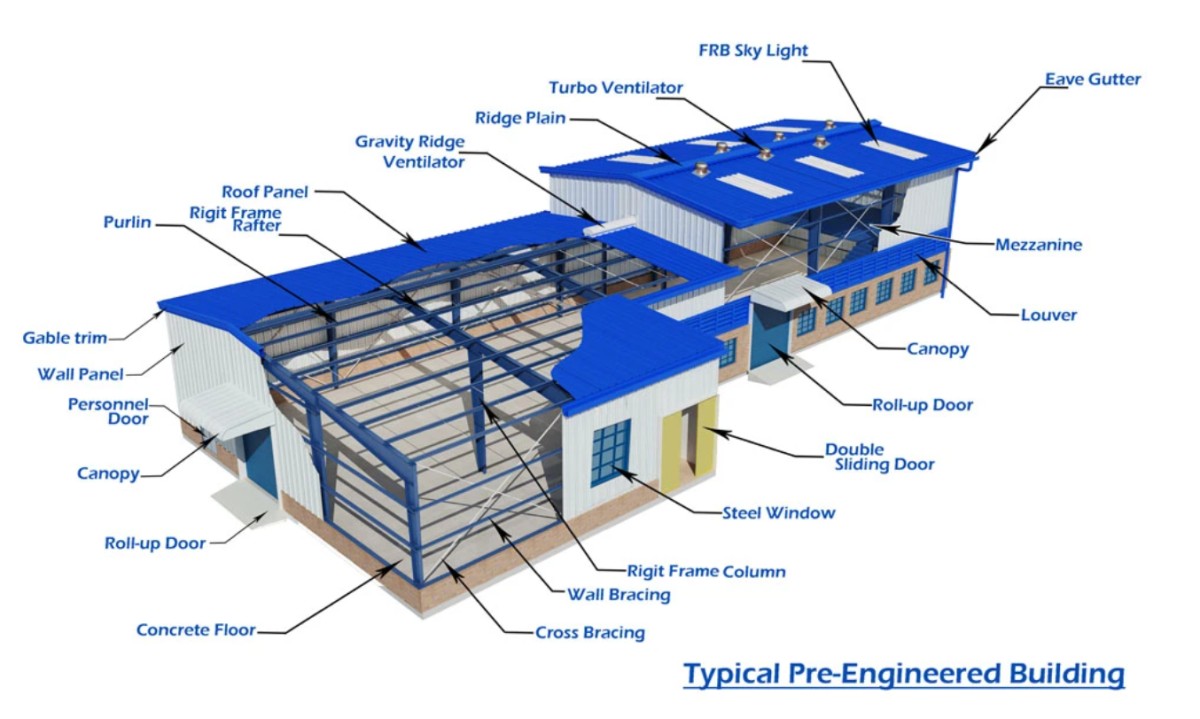

The construction of steel structure workshop (also called steel hall) is mainly divided into the following parts:
❶ Embedded parts to stabilize the structure of the complete plant
❷ Columns as primary steel members are generally H section welded steel coating with epoxy or alkyds paint for corrosion resistance
❸ For beams as primary steel members, generally H section welded steel are used. The height of the middle ridge is determined according to the span of the beam.
❹ Purlin as secondary steel members: C-shaped galvanized steel and Z-shaped galvanized steel are generally used.
❺ Supports and braces are usually round steel coating anti-corrosion paint.
❻ Roof and wall cladding system. The first one is a single separate tile (PPGI tile) without insulation layer. The second type is sandwich composite panel. Polyurethane, glass wool, rock wool and EPS are sandwiched between the two layers of color-coated metal sheet to play the role of warming in winter and cooling in summer, and also has the effect of sound insulation and fire prevention.
The main advantages of steel structure workshop are:
Light weight, high strength and large span:
Although the density of steel is higher than other building materials, its strength is very high. Under the same force, the steel structure has a small dead weight and can be made into a structure with a larger span.
Short construction time:
the structural parts of the plant are mainly produced in the factory and prefabricated, and then installed on the site. The erected work is convenient and the construction is convenient.
High fire resistance:
When the surface temperature of the steel is within 150℃, its strength changes little. When the temperature exceeds 150℃, its strength decreases significantly. Generally, fire retardant coatings are applied to the surface of steel structures to form a protective film to increase the fire resistance limit of the components. Of course, the reasonable division of fire compartments and the use of fire shutters are also very important.
Sound insulation and heat preservation:
Fill the metal roof with sound insulation material (usually glass wool, EPS, rock wool, polyurethane), or add heat insulation reflective paint on the metal tile surface.
