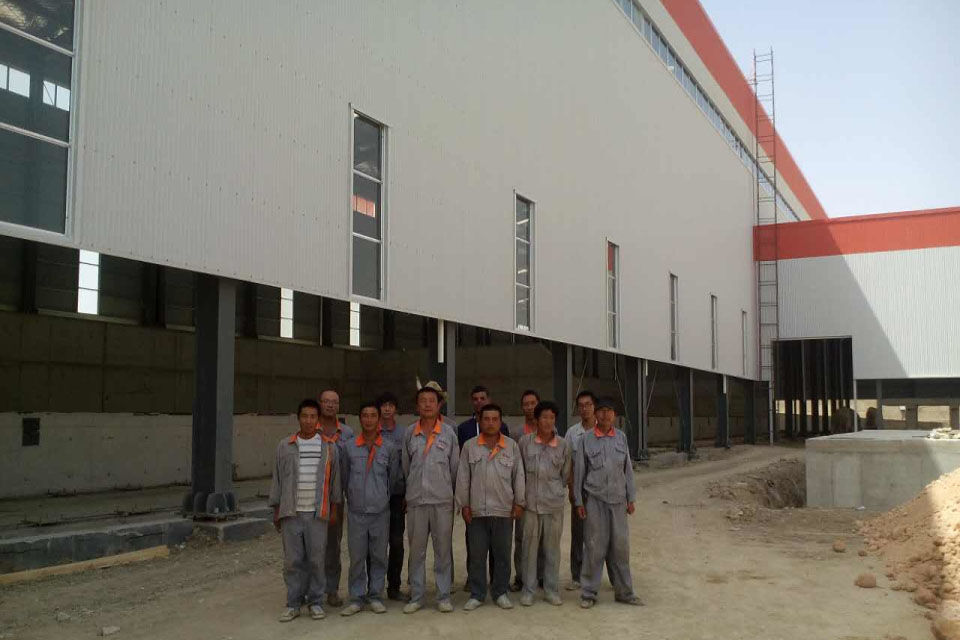

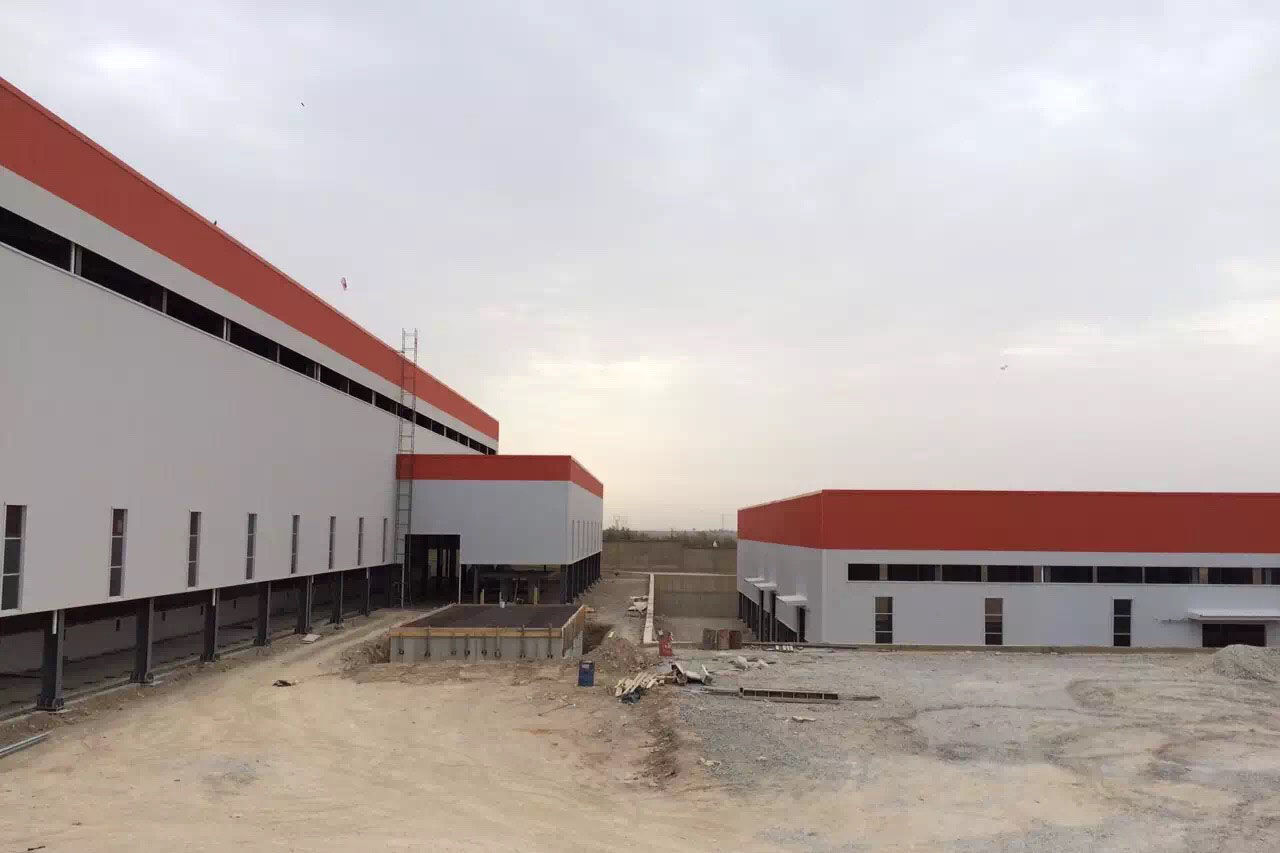

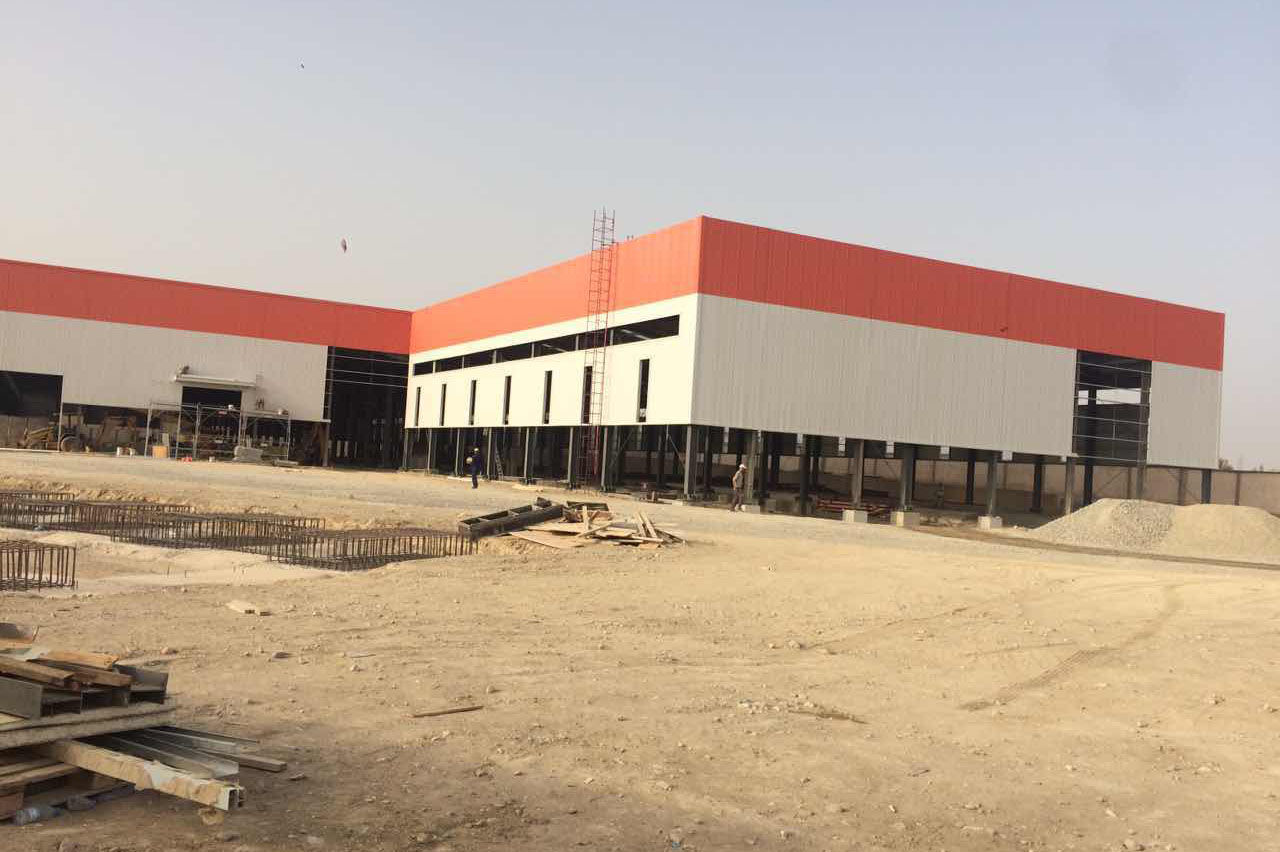

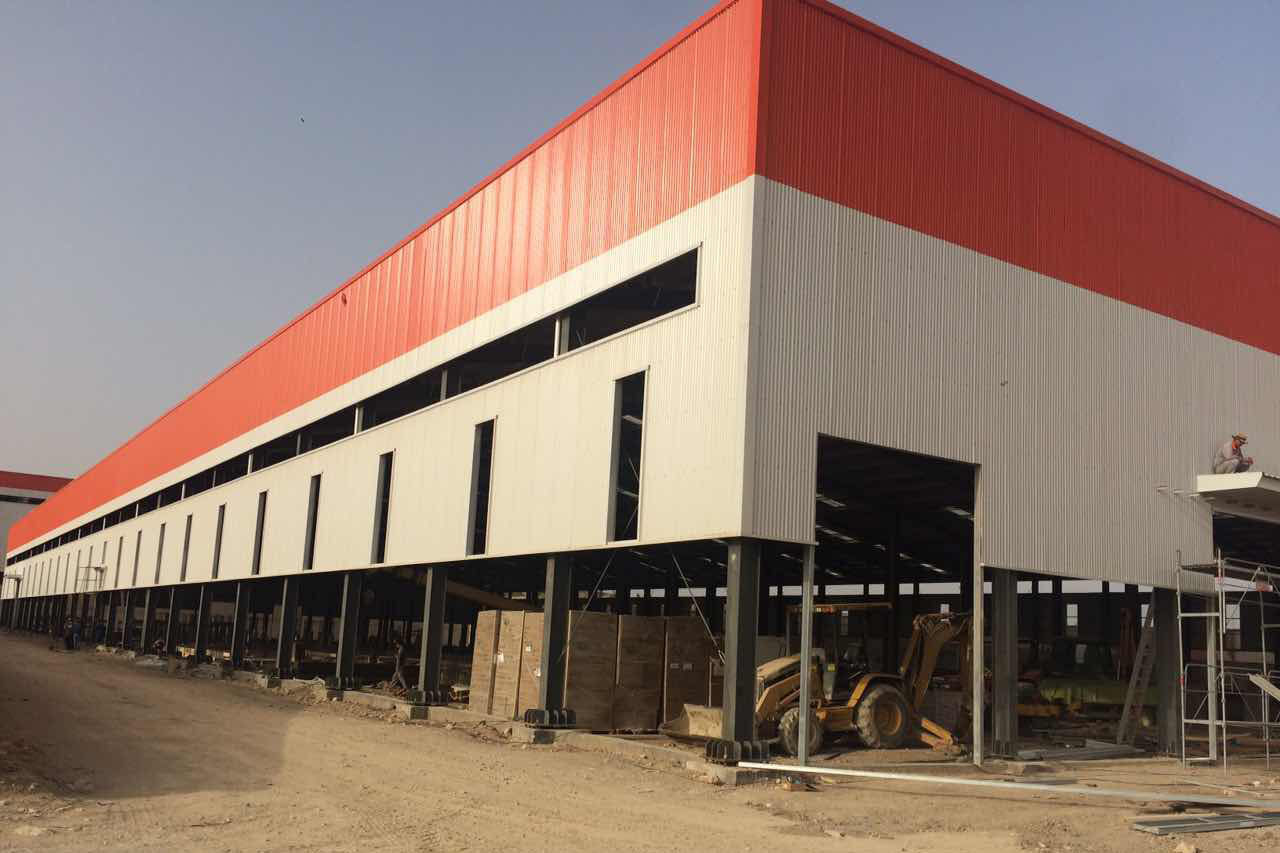

Prefabricated steel workshop for fabrication brick in Algeria


Technical data:

The project is located in Algeria, northern Africa. The main processing content is steel columns, steel beams also called rafters, and steel roof trusses. The main processing structure is H-section steel columns and steel beams.

Surface: 5000 Sq.m.

Turnkey project

This prefabricated steel production hall is mainly classified

● Embedded parts, which can make building frame stable

● Columns, also called pillar or post. Normally adopt H section steel or C section steel, usually via angle steel to connect two pieces of  C section steel

● Beams, also called rafters. Normally use H section steel and C section steel. The ridge height can depend by beam span.

● Purlins, normally use C section or Z section steel

● Bracing and bars are round steel

● Wall and roof cladding system. One is single skin PPGI steel, another is composite sandwich panel, which core is glass wool, rock wool, EPS, polyurethane PU panel working as function of insulation and sound& fire resistance.


For this prefabricated steel workshop is used for brick production in Algeria. KXD offered one stop service among design, fabrication, delivery and erection of this complete structural steel building, it took 6 weeks for construction. We worked with the local PEB contractors in Algeria, which is responsible for contacting local customer and tracking the project process, but KXD is responsible for drawing, production, delivery and erection. After deal, KXD will remit commission to PEB (pre-engineered steel building ) contractors directly. For civil engineering works, the customer shall be done by themselves, KXD is only responsible for installation of steel frame building. KXD also welcome architectural designers or consultants to join in, especially you have experience in well-known prefabricated steel building company like Al Shahin Metal Industries, Astra, Salam international, Astron, PEB Steel.


Superior Prefabricated Steel Building for Your Demand

YOUR BENEFITS AT A GLANCE

● Free span up to 60 m and various sidewall heights

● Flat or roof pitch of 10° or 22° or multi-roof.

● Aesthetic integration of office rooms to maximize space

● Easy integration of mezzanines, crane bridges, solar panels

● Climate control thanks to different types of insulation sandwich panel

● Short time erection and seismic resistance

● Various solutions to allow natural light inside your building

● Easy relocation, extension and adaptation

The construction of steel structure workshop (also called steel hall) is mainly divided into the following parts:

Embedded parts to stabilize the structure of the complete plant

Columns as primary steel members are generally H section welded steel coating with epoxy or alkyds paint for corrosion resistance

For beams as primary steel members, generally H section welded steel are used. The height of the middle ridge is determined according to the span of the beam.

Purlin as secondary steel members: C-shaped galvanized steel and Z-shaped galvanized steel are generally used.

Supports and braces are usually round steel coating anti-corrosion paint.

Roof and wall cladding system. The first one is a single separate tile (PPGI tile) without insulation layer. The second type is sandwich composite panel.  Polyurethane, glass wool, rock wool and EPS are sandwiched between the two layers of color-coated metal sheet to play the role of warming in winter and cooling in summer, and also has the effect of sound insulation and fire prevention.

The main advantages of steel structure workshop are:

Light weight, high strength and large span:

Although the density of steel is higher than other building materials, its strength is very high. Under the same force, the steel structure has a small dead weight and can be made into a structure with a larger span.

Short construction time:

the structural parts of the plant are mainly produced in the factory and prefabricated, and then installed on the site. The erected work is convenient and the construction is convenient.

High fire resistance:

When the surface temperature of the steel is within 150℃, its strength changes little. When the temperature exceeds 150℃, its strength decreases significantly. Generally, fire retardant coatings are applied to the surface of steel structures to form a protective film to increase the fire resistance limit of the components. Of course, the reasonable division of fire compartments and the use of fire shutters are also very important.

Sound insulation and heat preservation:

Fill the metal roof with sound insulation material (usually glass wool, EPS, rock wool, polyurethane), or add heat insulation reflective paint on the metal tile surface.
